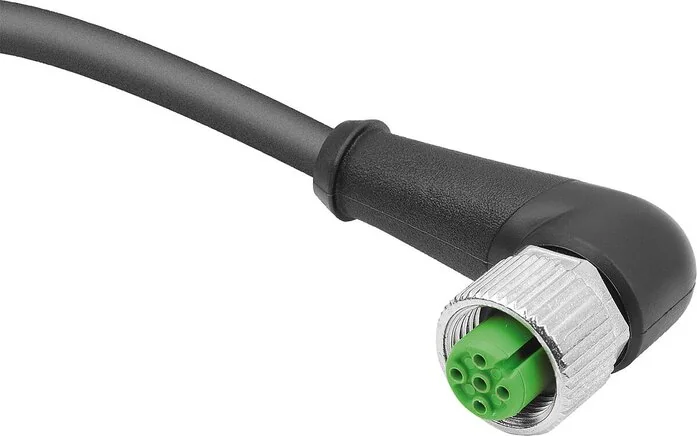

Norelem - 80150-10-11204X3000 - Plug Connector

SKU: norelem-80150-10-11204x3000

Norelem - 80150-10-11204X3000 - Plug Connector

€23.36€19.97 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€23.36

Brand
Norelem
Form
B
Version
Buchse (weiblich)
Material
Kabel und Gehäuse PUR.
Form Type
Buchse abgewinkelt
Version 1
mit Schraubanschluss
Version 2
4-polig
Halogen-free
No
EMV Suitability
ungeschirmt
Test Voltage (V)
2000 AC
Temperature Range
-25 °C to +70 °C
Base Body Material
Kunststoff
Degree Of Pollution
3
Nominal Voltage (V)
300 AC
Degree Of Protection
IP65/IP67
Operating Voltage (V)
250 AC / 250 DC
Rated Impulse Voltage (V)
2.500
Bending Radius Cable Fixed
≥ 5 x D1
Rated Current (40 °C) (A)
4,0
Bending Radius Cable, Moving
≥ 10 x D1
Number Of Bending Cycles Max
10000000 (25 °C)
Temperature Range Cable, Fixed
T= -30 °C - +80 °C
Temperature Range Cable, Moving
T= -5 °C - +80 °C
Conductor Resistance (20 °C) (Ω/Km)
60
Number Of Conductors x Conductor Cross-section
N=4 X 0,34 mm²
EAN
4059495772257
Manufacturer
Norelem
