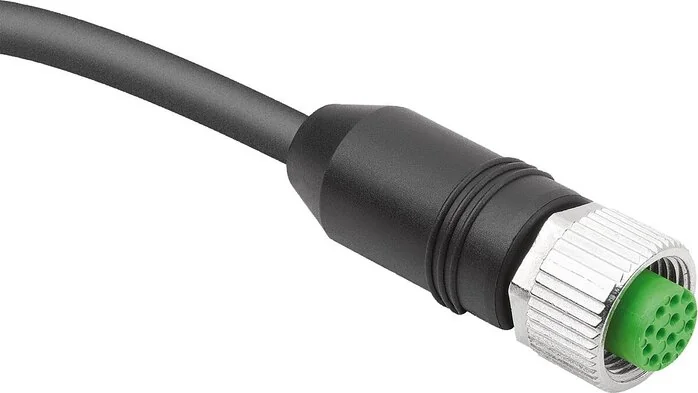

Norelem - 80150-10-1212X5000 - Plug Connector

SKU: norelem-80150-10-1212x5000

Norelem - 80150-10-1212X5000 - Plug Connector

€115.83€99.00 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€115.83

Brand
Norelem
Form
A
Version
Buchse (weiblich)
Material
Kabel und Gehäuse PUR.
Form Type
Buchse gerade
Version 1
mit Schraubanschluss
Version 2
12-polig
Halogen-free
Yes
EMV Suitability
ungeschirmt
Test Voltage (V)
1500 AC
Temperature Range
-25 °C to +70 °C
Base Body Material
Kunststoff
Degree Of Pollution
3
Nominal Voltage (V)
300 AC
Degree Of Protection
IP65/IP67
Operating Voltage (V)
30 AC / 30 DC
Rated Impulse Voltage (V)
800
Bending Radius Cable Fixed
≥ 7,5 X D1
Rated Current (40 °C) (A)
1,5
Bending Radius Cable, Moving
≥ 10 x D1
Number Of Bending Cycles Max
2000000 (25 °C)
Temperature Range Cable, Fixed
T= -40 °C - +85 °C
Temperature Range Cable, Moving
T= -25 °C - +85 °C
Conductor Resistance (20 °C) (Ω/Km)
138
Number Of Conductors x Conductor Cross-section
12 x 0,14 mm²
EAN
4059495772219
Manufacturer
Norelem
