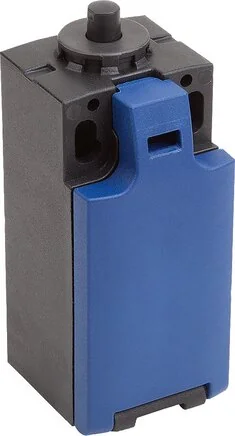

Norelem - 83450-1121 - Position Switch

SKU: norelem-83450-1121

Norelem - 83450-1121 - Position Switch

€67.52€57.71 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€67.52

Brand
Norelem
Material
Gehäuse Kunststoff, glasfaserverstärkt.
Version 1
Sprungschaltung
Cable Entry
M20 ausbrechbar
Designation
Positionsschalter
Connection Type
Schraubanschluss
Protection Class
II Schutzisolierung
Temperature Range
-30 °C to +80 °C
Base Body Material
Kunststoff
Degree Of Pollution
3
Switching Frequency
5000/h
Degree Of Protection
IP66/IP67
Number Of NO Contacts
1
Stripping Length (mm)
5-6
Actuation Speed Max (m/s)
0,5
Actuation Speed Min (mm/min)
10
Certificates / Standards Met
CE, cULus, CCC, EAC.
Thermal Continuous Current (A)
5
Rated Insulation Voltage Ui (V)
300
Number Of Normally Open Contacts
2
Max. Connection Cross-section (mm²)
0,34-1,5
Tightening Torque Mounting Screw (Nm)
1,4
Rated Impulse Withstand Voltage Uimp (kV)
4
Tightening Torque For Contact Screws (Nm)
0,6-0,8
Utilization Category According To IEC/EN60947-5-1
AC15: 240 V / 3 A.
EAN
4059495718040
Manufacturer
Norelem
