NTN - ASS205N - NTN Bearing insert

OEM Supplier

SKU: ntn-ass205n

NTN - ASS205N - NTN Bearing insert

Last known price:

€21.01

Request a Quote

Pay Securely with

Request a Quote

Brand
ntn
Part Numbers
ass205n
Bore Diameter (mm)
25
Outer Diameter (mm)
52
Inner Ring Width (mm)
34.1
Outer Ring Width (mm)
17
Weight (kg)
0.19
Dynamic Load Rating (kN)
14.3
Static Load Rating (kN)
7.8
Seal Type
RSR
Locking Mechanism
grub screw
Grease Nipple
True
Quality
OEM Supplier
Manufacturer
ntn

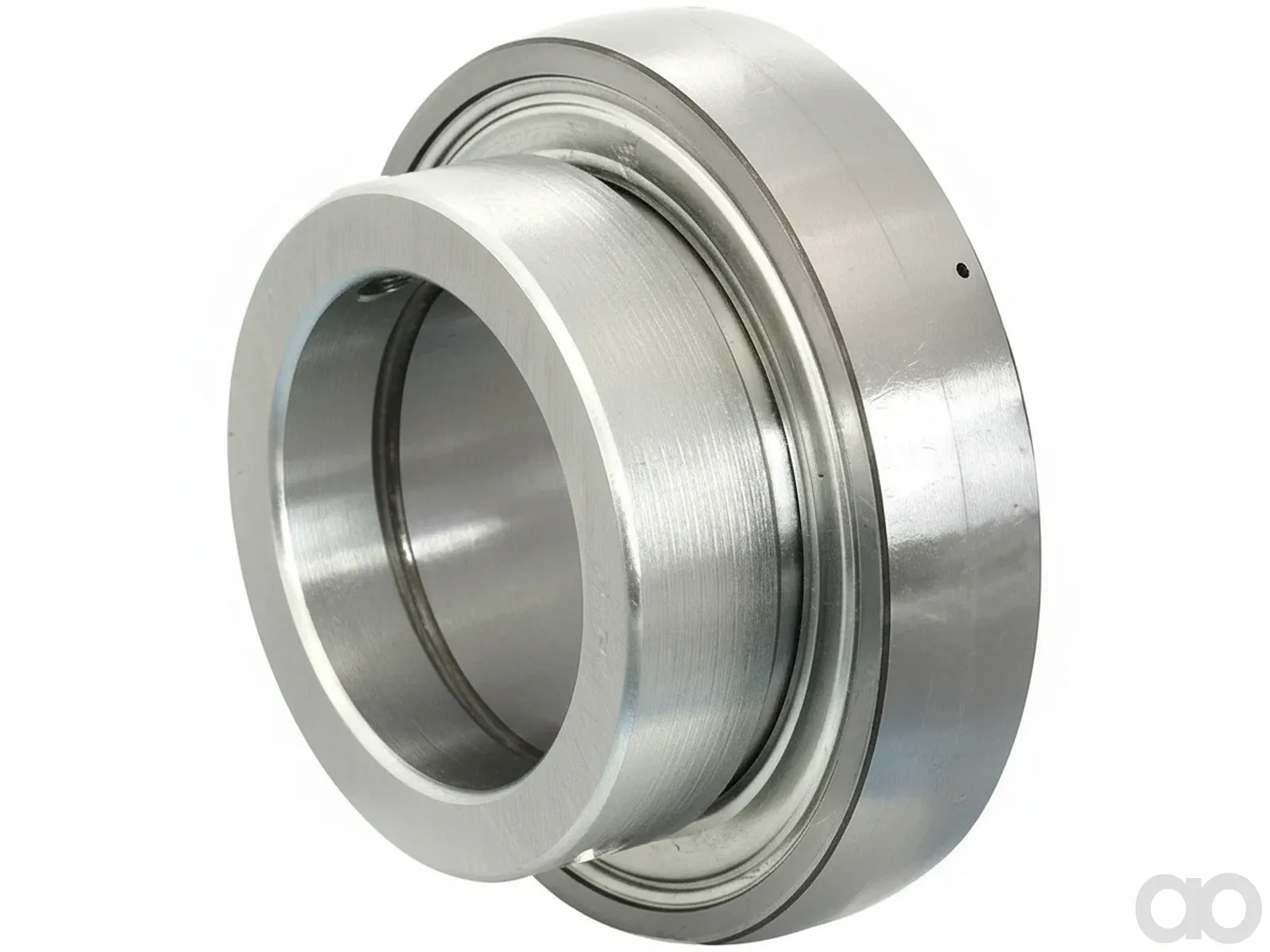

The NTN ASS205N is a high-quality bearing insert, also known as a Y-bearing, featuring a 25mm bore and a spherical 52mm outer diameter. Designed for robust performance, it includes a wide inner ring with grub screw locking for secure shaft attachment and RSR contact seals for enhanced protection against contaminants. This insert is suitable for various agricultural and industrial machinery, offering a dynamic load rating of 14.3 kN and a static load rating of 7.8 kN.
NTN
NTN manufactures bearings and drivetrain components for agricultural machinery, including tractors and implements. The brand's products are designed to withstand heavy loads and harsh operating conditions in farming and forestry. NTN's precision engineering ensures durability and efficiency in agricultural applications. Shop more than 2,732 genuine Ntn spare parts.
