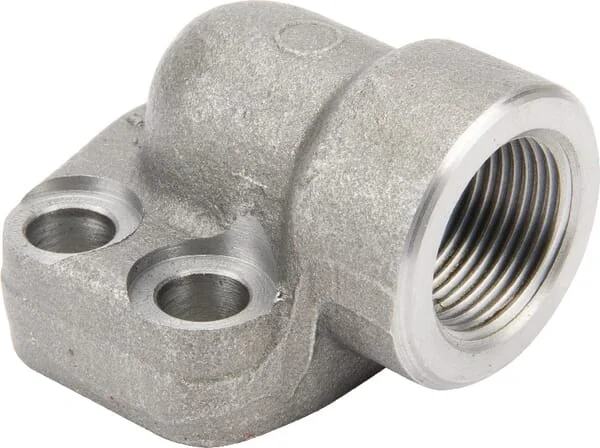

Oleo Tecnica - AFS616G1690 - SAE Flange, 90°
Oleo Tecnica - AFS616G1690 - SAE Flange, 90°
Oleo Tecnica - AFS616G1690 - SAE Flange, 90°
Oleo Tecnica - AFS616G1690 - SAE Flange, 90°

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

Oleo Tecnica - AFS616G1690 - SAE Flange, 90°

Oleo Tecnica - AFS616G1690 - SAE Flange, 90°

€23.44

(Excl. VAT)

Price

(Excl. VAT)

€23.44

Product Details

Brand
Oleo Tecnica
Unit
Each
FWidth
85 mm
Height
34 mm
Weight
1,11 kg
Includes
Threaded flange Without bolt set and O-ring
Material
Steel
BInside diameter
25 mm
Connection no 1 type
Thread
Max working pressure
414 BAR
Connection no 1 length
22 mm
LConnection holes diameter
13 mm
Connection no 1 thread type
BSP
Flange mounting holes number
4
IConnection no 1 thread length
22 mm
CFlange mounting holes distance
57,15 mm
AConnection no 1 thread diameter
1 Inch
EFlange mounting holes distance 2
27,76 mm
Connection no 1 type - male/female
Female
NConnection 2, centre to end distance
51 mm
Manufacturer
Oleo Tecnica
