Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm
Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm
Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm
Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm
Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm
Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm

Oleodinamica Marchesini - C056V0280 - Rotary Plough Valve VRA SE, Piston 60 - 80mm

€117.65

(Excl. VAT)

Price

(Excl. VAT)

€117.65

Product Description

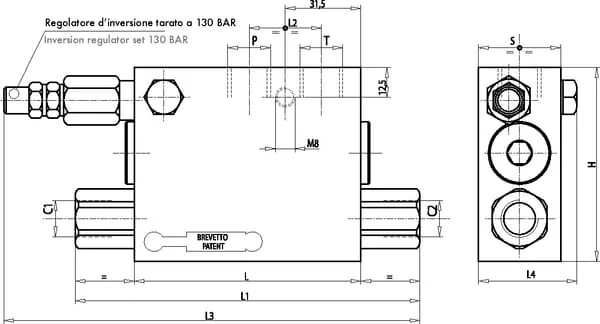

The VRA SE valve was designed for reversible plows. It automatically switches the oil flow, which allows you to change the movement of the motor and thus the rotation of the plough. Use: C1 connects to the piston rod side, C2 to the piston side, P and T to the inlet. The valve can be mounted on the engine or the plough frame.
Oleodinamica Marchesini

Product Details

Brand
Oleodinamica Marchesini
Unit
Each
Material
galvanised steel
L1Length L1
142.0 mm
L4Length L4
42.0 mm
LBody length
94 mm
HTotal height
80 mm
L3Total length
177 mm
Connection type
Thread
Working pressure
400 BAR
Connection thread type
BSP
STotal width (diameter)
35 mm
L2Mounting holes distance
30 mm
P-TConnection thread diameter
3/8 Inch
Manufacturer
Oleodinamica Marchesini
