Electrical, Lighting & Batteries

Other Electrical Components

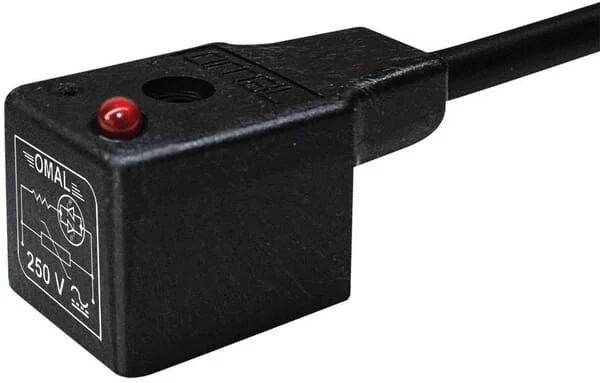

Omal - MCB25115 - Connector With Moulded Cable

Omal - MCB25115 - Connector With Moulded Cable

Number of products

In stock - ready to ship

Order now for delivery between 14 May and 18 May

Free shipping on orders over €60

Pay Securely with

Omal - MCB25115 - Connector With Moulded Cable

Omal - MCB25115 - Connector With Moulded Cable

€10.33

(Excl. VAT)

Price

(Excl. VAT)

€10.33

Number of products

Product Details

Brand

Unit

Each

Length

1500 mm

Series

B

Sealing

Yes

EN standard

175301-803-A

Max voltage

250 V

Circuit type

Bipolar LED VDR

DIN standard

43650

Max. current

16 A

Voltage type

AC DC

Earth position

H12

Housing colour

Black

LED indication

Yes

Poles distance

10 mm

Nominal voltage

250 V

Number of poles

3

Operating current

10 A16 A

Protection class IP

65

LED indication colour

Red

Nominal voltage range

220-250 V

Number of cable cores

3

Max working temperature

125 °C

Min working temperature

-30 °C

Total length with cable

1,5 m

Cable core cross section

0,75 mm²

Cable outer sheath material

Polyurethane

Connection 2, connection type

Free conductor end

Manufacturer

Omal
