Home
Electrical, Lighting & Batteries
Fuses & Relays

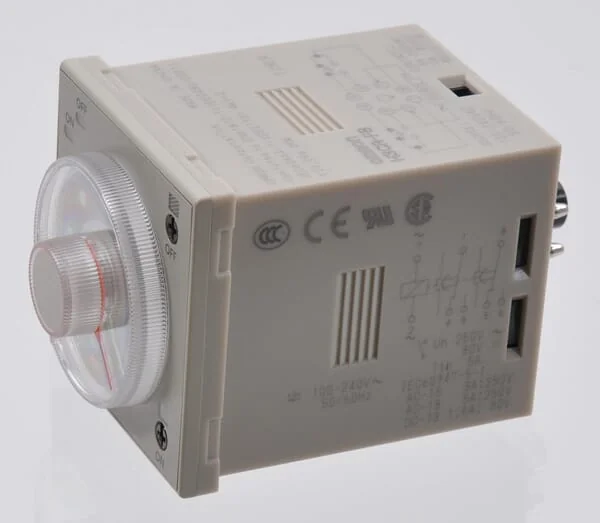

Omron - H3CRF8 - Timing Relay 100-240vac Omron
Omron - H3CRF8 - Timing Relay 100-240vac Omron
Omron - H3CRF8 - Timing Relay 100-240vac Omron
Omron - H3CRF8 - Timing Relay 100-240vac Omron

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

Omron - H3CRF8 - Timing Relay 100-240vac Omron

Omron - H3CRF8 - Timing Relay 100-240vac Omron

€208.48

(Excl. VAT)

Price

(Excl. VAT)

€208.48

Omron
Omron is a global manufacturer of automation components, including sensors and control systems for agricultural machinery. The brand provides precision technology for monitoring and optimizing tractor and equipment performance. Its solutions enhance efficiency in farming operations through advanced automation and data-driven insights. Shop more than 45 genuine Omron spare parts.

Product Details

Brand
Omron
Unit
Each
Depth
70 mm
Width
48 mm
Height
48 mm
Time range
0.050-1080000.0 s
Current Type
AC
Repeatability
0.3 %
Rated load AC1
1250 W
Technical info
DIN 48 x 48-mm Twin Timers • Wide power supply ranges of 100 to 240 VAC and 48 to 125 VDC respectively. • ON- and OFF-times can be set independently and so combinations of long ON- or OFF-time and short OFF- or ON-time settings are possible. • Fourteen time ranges from 0.05 s to 30 h or from 1.2 s to 300 h depending on the model to be used. • Models with a flicker ON start or flicker OFF start are available. • Easy sequence checks through instantaneous outputs for a zero set value at any time range. • Length, when panel-mounted with a Socket, of 80 mm or less. • 11-pin and 8-pin models are available.
Nominal current
5 A
Insulation class
40
Max. Current (A)
5A A
Max. voltage (V)
250 V
Protection class
IP40
Range of voltage
100 - 240 V
Number of contacts
2
Recovery time (ms)
100 ms
Function star-delta
No
Complete with socket
Yes
Specified time ranges
0,05s...30h
Function pulse shaping
No
Manufacturer Product ID
H3CR8003C
Remote operation possible
No
With semiconductor output
No
Voltage type for actuating
AC DC
Suitable for remote control
No
Type of electric connection
Plug-in connection
Function delay-on energization
No
Min. switching load MW (V / mA)
50 (5/10)
Function delay on de-energization
No
Pluggable on auxiliary contact block
No
Outputs, reversible delayed/undelayed
No
Rated control supply voltage Us at DC
100.0-125.0 V
Function floating contact on energization
No
Rated control supply voltage Us at AC 50HZ
100.0-240.0 V
Rated control supply voltage Us at AC 60HZ
100.0-240.0 V
Function floating contact on de-energization
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Suitable for DIN rail (top hat rail) mounting
Yes
Number of outputs, delayed, change-over contact
2
Number of outputs, delayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Function flashing, starting with pulse, fixed time
No
Relay technology category according to IEC 61810-7
RT I
Number of outputs, undelayed, normally open contact
0
Manufacturer
Omron
