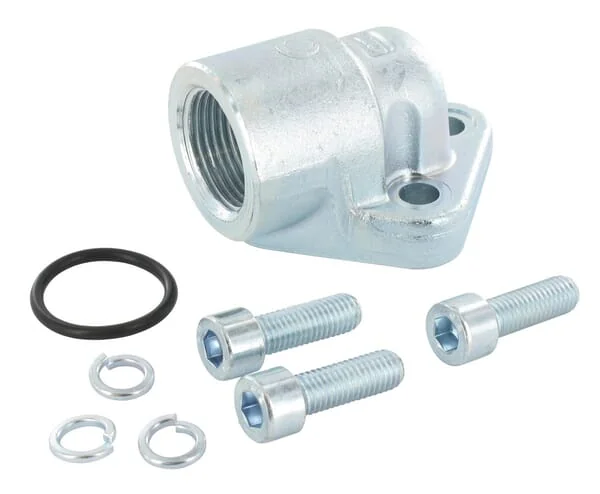

Omt - 2G08 - OMT Flange Elbow 1/2
SKU: omt-2g08
€13.85€11.84 (Excl. VAT)
In stock - ready to ship
Order now for shipping within 2 to 4 business days
Shipping fee: €9.99 incl. VAT
Pay Securely with
Omt - 2G08 - OMT Flange Elbow 1/2
€13.85
Price
€13.85
Product Details
Brand
Part Numbers
2G08
Unit
Set
Bolts
M8x25
O-ring
23,81 x 2,62 mm
BHeight
41 mm
Includes
Flange Bolts O-ring
Material
Cast iron
Designed for
Flanges for various pumps and motors
GThickness 2
22 mm
PSAE diameter
1/2 Inch
Product details
Maximum operating pressure : 300 bar O-ring : 90 shore Connection flanges for gear pumps and motors
DInside diameter
20 mm
COutside diameter
60 mm
Max working pressure
300 BAR
Mounting holes thread diameter
M8
AFlange mounting holes distance
40 mm
FFlange mounting holes distance 2
36 mm
Manufacturer
OMT
