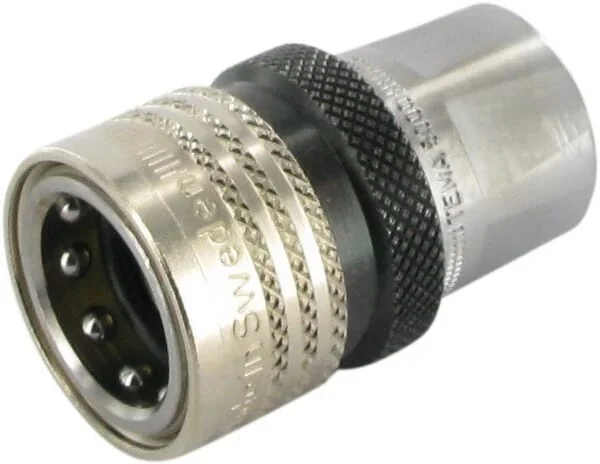

Parker - 751134TE - Parker Coupling sleeve BI TEMA-3/4 BSP

OEM Supplier

SKU: parker-751134te

Parker - 751134TE - Parker Coupling sleeve BI TEMA-3/4 BSP

€89.51€76.50 (Excl. VAT)

RRP:€108.20
Save €18.69

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€89.51

Brand
Part Numbers
751134TE
OEM Part Numbers

Parker

Unit
Each
Shape
Straight - 2 connection sides
Benefits
The coupling bushes have a lock ring These couplings are equipped with a double internal seal To be coupled under residual pressure
Material
Brass Steel
Body size
3/4 Inch
Properties
TEMA couplings are characterised by high quality and reliability for a long service life
Total length
72 mm
Seal material
Nitrile rubber [NBR]
Technical info
Standard: TEMA-specific Material: hardened steel Surface treatment: white zinc-plated with chrome III passivation Coupling/decoupling: with residual pressure Connection: internal thread Medium used: hydraulic oil on mineral base; for advice on using other types of medium, please contact our sales department
Outside diameter
52 mm
Working pressure
280 BAR
Application range
Agricultural and earth-moving machinery, including Volvo
Connection 2, type
Thread
Connection no 1 type
Quick coupling
Max working temperature
100 °C
Connection no 1 diameter
52 mm
Min. working temperature
-30 °C
Connection 2, thread type
BSP
Connection 2, thread diameter
3/4 Inch
Connection 2, threads per inch
14
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Female
Manufacturer
Parker

The Parker coupling sleeve BI TEMA-3/4 BSP is made by an OEM supplier. Part number 751134TE.
Parker
Parker Hannifin Corporation, commonly known as Parker, is an American multinational corporation founded in 1917 by Arthur L. Parker. Headquartered in Cleveland, Ohio, USA, Parker is a leading global manufacturer of motion and control technologies and systems, providing precision-engineered solutions for a wide variety of mobile, industrial, and aerospace markets. Parker's extensive product range includes hydraulic, pneumatic, electromechanical, filtration, fluid and gas handling, climate control, process control, and sealing and shielding technologies. For agricultural machinery, the company is particularly known for its robust hydraulic components, such as pumps, motors, valves, cylinders, hoses, and fittings, which are integral to the operation of tractors, harvesters, and irrigation systems. Its filtration products also play a crucial role in maintaining system cleanliness and longevity. At Partao, you can find a comprehensive selection of Parker parts, including Air Filters, Bolts & Fasteners, Control Modules, Fuel Caps, and Fuel Filters. Manufacturers and operators of agricultural equipment worldwide rely on Parker's components for their proven reliability and performance in demanding applications. The brand's commitment to engineering excellence ensures that its fluid power and control solutions contribute to the efficiency and durability of modern farm machinery. Shop more than 3,366 genuine Parker spare parts.
