PCE - 210337 - Other Electrical Components

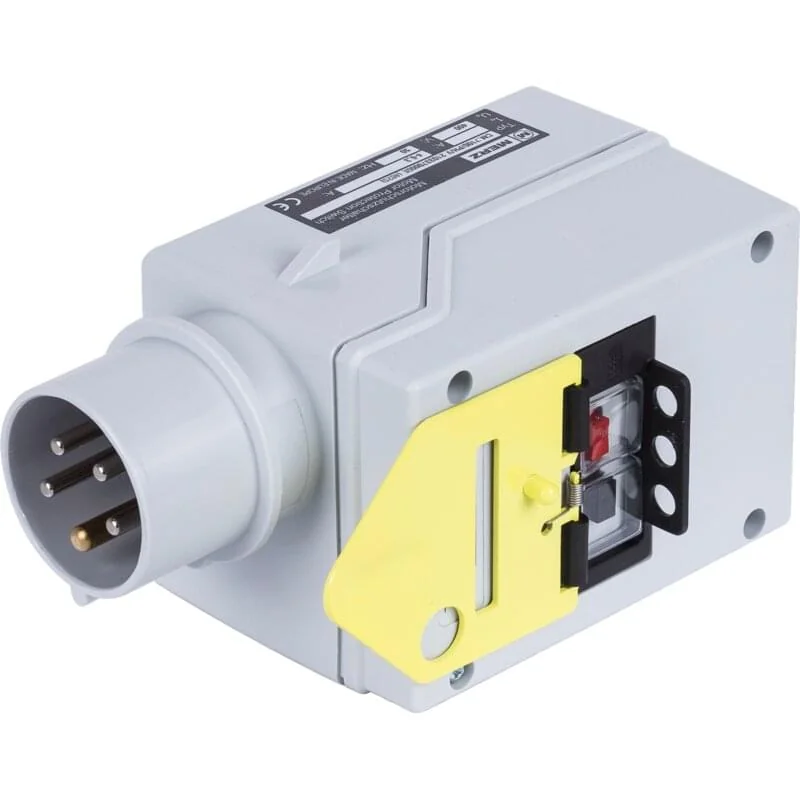

Surface-mounted appliance plug with phase inverter CEE 16A 5p 400V with motor protection Housing: ISO housing with pre-embossing for drillings 68x68 or 80x80mm 400V 50Hz, undervoltage release with padlock interlock Adjustment range: 4,0A - 6,3A Degree of protection: IP44 Particularly suitable for direct mounting on the motor terminal surface (without N-terminal) Overload release current setting: 4,0 – 6,3 A With thermal overload protection: Yes Release technology: thermomagnetic Rated operational voltage: 400 – 400 V Rated continuous current Iu: 16 A Connection type main circuit: Screw connection Design of the actuating element: Push button Device type: Complete device in housing With integrated auxiliary switch With integrated undervoltage release Number of poles: 5 Degree of protection (IP): IP44
