Phoenix Contact - UT4 - Universal Terminal
Phoenix Contact - UT4 - Universal Terminal
Phoenix Contact - UT4 - Universal Terminal
Phoenix Contact - UT4 - Universal Terminal

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping on orders over €60

Pay Securely with

Phoenix Contact - UT4 - Universal Terminal

Phoenix Contact - UT4 - Universal Terminal

€3.49

(Excl. VAT)

Price

(Excl. VAT)

€3.49

Phoenix Contact
Phoenix-contact specializes in industrial electrical components and automation technology for machinery. The brand provides connectors, terminals, and control systems used in agricultural equipment. Its products ensure reliable power distribution and signal transmission in harsh farming environments. Shop more than 180 genuine Phoenix-contact spare parts.

Product Details

Brand
Phoenix Contact
Unit
Each
Depth
46,9 mm
Width
6,2 mm
Colour
Grey
Height
47,5 mm
Length
47,7 mm
Max. current
32 A
Rated voltage
1000 V
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage
1000 V
Number of levels
1
Rated current In
32 A
Operation temperature
-60-105 °C
Closing plate required
Yes
Manufacturer Product ID
3044102
Internally connected stages
Yes
Max. solid cable cross section
6 mm²
Explosion-tested version 'Ex e'
Yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Max. stranded cable cross section
6 mm²
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.14-6.00 mm²
Connectable conductor cross section multi-wired
0.14-1.50 mm²
Inflammability class of insulation material according to with UL94
V0
Max. stranded cable cross section, with ferrule with plastic sleeve
4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14-4.00 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14-6.00 mm²
Manufacturer
Phoenix Contact

Similar items you might like

  • Phoenix Contact

    Phoenix Contact - UT4BU - Universal Terminal Block

    Phoenix Contact

    €3.50

  • Phoenix Contact

    Phoenix Contact - UT4QUATTRO - Double Level Terminal Block 30A

    Phoenix Contact

    €4.86

  • Phoenix Contact

    Phoenix Contact - UT4QUATTROBU - Double Level Terminal Block 30A Blue

    Phoenix Contact

    €4.86

  • Phoenix Contact

    Phoenix Contact - UT6 - Universal Terminal Block

    Phoenix Contact

    €4.01

  • Phoenix Contact

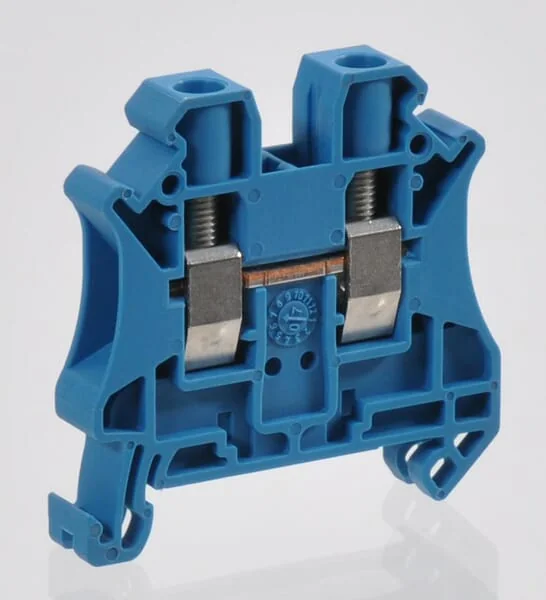

    Phoenix Contact - UT6BU - Universal Terminal Block

    Phoenix Contact

    €3.94

  • Phoenix Contact

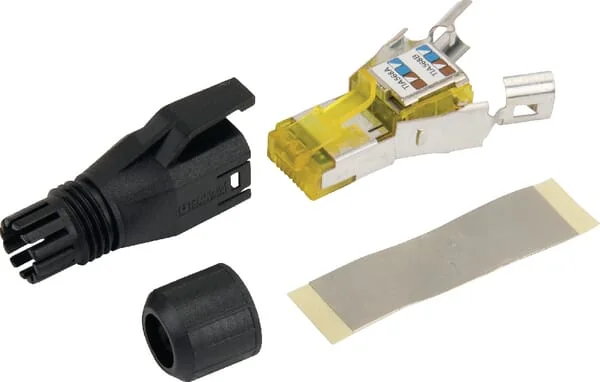

    Phoenix Contact - VS08RJ4510GQ - RJ45, CAT6A Network Connector
