Prevost - ERG071101P001 - Prevost Quick coupling female thread BSP1/4"
Prevost - ERG071101P001 - Prevost Quick coupling female thread BSP1/4"

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

Prevost - ERG071101P001 - Prevost Quick coupling female thread BSP1/4"

Prevost - ERG071101P001 - Prevost Quick coupling female thread BSP1/4"

€28.75

(Excl. VAT)

Price

(Excl. VAT)

€28.75

Product Description

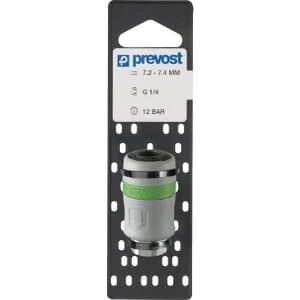

The Prevost ERG071101P001 S1 Quick Safety Coupling features a female BSP 1/4" thread and a durable composite body, complemented by a brass valve and stainless steel spring. Engineered for safety, it includes a button mechanism to prevent accidental disconnection. This non-marring coupling delivers a high flow rate of 1,820 L/min at 6 bar and operates efficiently within a working pressure range of 2 to 12 bar, with a maximum allowable pressure of 16 bar. It is designed to function reliably in temperatures ranging from -15°C to +70°C.
Prevost
Prevost manufactures agricultural trailers and transport platforms for heavy-duty farming and forestry applications. The brand offers robust designs for hauling crops, livestock, and equipment across rough terrain. Its trailers are built for durability and load capacity in demanding environments. Shop more than 371 genuine Prevost spare parts.

Product Details

Brand
prevost
Length mm
70
Weight kg
0.07
Thread size
BSP 1/4″ Female
Body material
Composite
Valve material
Brass
Max diameter mm
24
Spring material
Stainless steel
Working pressure bar
2-12
Max allowable pressure bar
16
Flow rate L per min at 6 bar
1820
Max operating temperature celsius
70
Min operating temperature celsius
-15
Manufacturer
prevost
