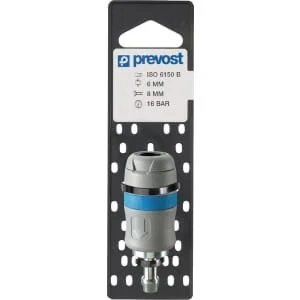

Prevost - IRG061806P001 - QUICK COUPLING AIR AUTO 6MM

SKU: prevost-irg061806p001

Prevost - IRG061806P001 - Quick Coupling Air Auto 6mm

Last known price:

€24.49

Request a Quote

Pay Securely with

Request a Quote

Brand
prevost
Part Numbers
irg061806p001
OEM Part Numbers

Prevost

Fluid
Compressed air
Min Operating Pressure (bar)
2
Max Operating Pressure (bar)
12
Min Operating Temperature (°C)
-15
Max Operating Temperature (°C)
70
Flow Rate L Per Min At 6 (bar)
833
Hose Connection Diameter (mm)
6
Thread Connection NPT
1/8 female
Body Material
Composite
Valve Material
Nickel-plated brass
Spring Material
Stainless steel
Length (mm)
51
Diameter (mm)
20
Weight (kg)
0.03
Manufacturer
prevost

The Prevost IRG061806P001 is an S1 series automatic quick safety coupling designed for compressed air applications. Featuring a 6mm hose barb connection and a 1/8" NPT female thread, this coupling ensures a secure and leak-free connection. Its composite body, nickel-plated brass valve, and stainless steel springs provide durability and reliable performance in temperatures ranging from -15°C to +70°C. With an operating pressure range of 2 to 12 bar and a flow rate of 833 L/min at 6 bar, it offers efficient air transfer. The single-action safety mechanism prevents hose whip, enhancing user safety.
Prevost
Prevost manufactures agricultural trailers and transport platforms for heavy-duty farming and forestry applications. The brand offers robust designs for hauling crops, livestock, and equipment across rough terrain. Its trailers are built for durability and load capacity in demanding environments. Shop more than 514 genuine Prevost spare parts.
