Prillinger - 00136609 - Other Electrical Components

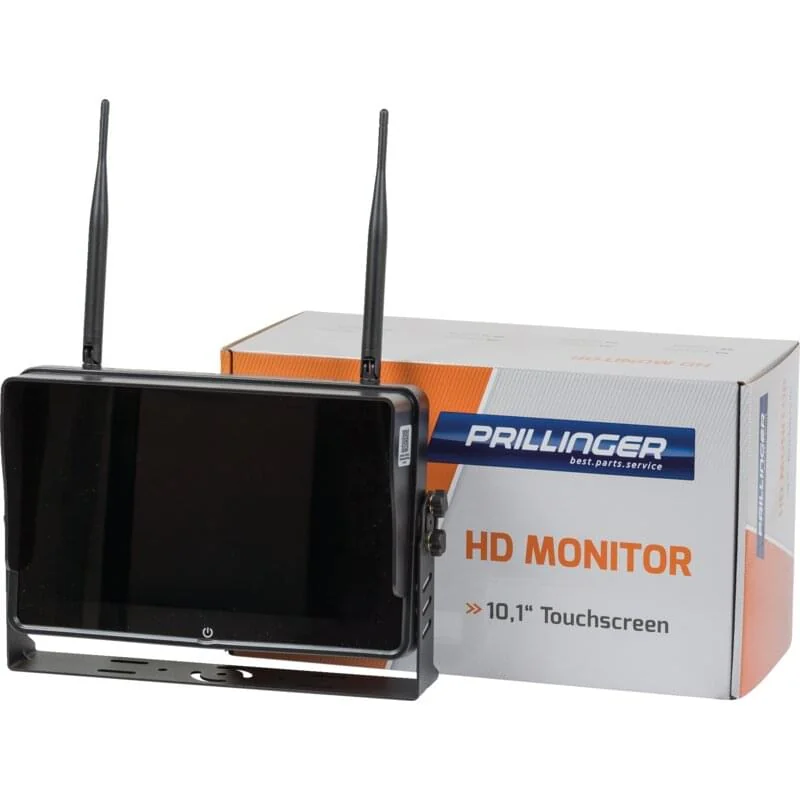

10,1-inch Touchscreen Monitor Screen: 10,1-inch LCD screen with a resolution of 1024 x 600, offering clear and sharp images. Housing: Made of an aluminum alloy, ensuring structural stability and effective heat dissipation. Operation: Supports touchscreen functionality, providing fast and responsive operation. Storage: External TF card storage for video recordings, supports up to 512 GB. Recording files are automatically overwritten. Voltage compatibility: Wide input voltage range of DC 11 V – 32 V, suitable for various vehicles and machines. Safety design: Features an internal reverse polarity protection circuit to prevent device damage from connections. Backlight design: Built-in protection circuit for constant voltage and current to extend the display's lifespan. Multilingual support: OSD menu (On-Screen Display) available in 10 languages. Multi-view display: Supports dual, triple, and quadruple screen display, as well as picture-in-picture mode. Image adjustment: Each channel can be independently adjusted for horizontal mirroring and supports upside-down installation and 180° screen rotation. Parking assistance: Supports parking guidelines for individual channels, with switchable guideline function. Vibration resistance: The compact design meets GB/T 2423.56-2018 standards for vibration resistance. Product parameters Screen: 10,1-inch IPS HD digital screen Wireless reception: built-in 2,4G wireless receiver Operating frequency: 2400–2483,5 MHz Reception sensitivity: -86 dB Reception distance: Up to 200 m clear line of sight Resolution: 1024 x 600 Viewing angle (LR/UD): Left/Right: 85/85, Up/Down: 85/85 Video system: PAL/NTSC (AUTO) Video recording format: AVI Recording memory card type: TF card (supports max. 512 GB) Response time: 25 Ms Load dump: ISO16750-2 standard (24-V system, Us 174 V, Ri 4 Ω, td 350 ms Vibration damping: 5GB T 2423.56-2018 standard (random 5G vibration) Operating temperature: -20 to +70 Storage temperature: -30 to +80 Operating voltage: DC 11-32 V Dimensions (LxWxD): 265 x 168 x 37 mm (without bracket)
