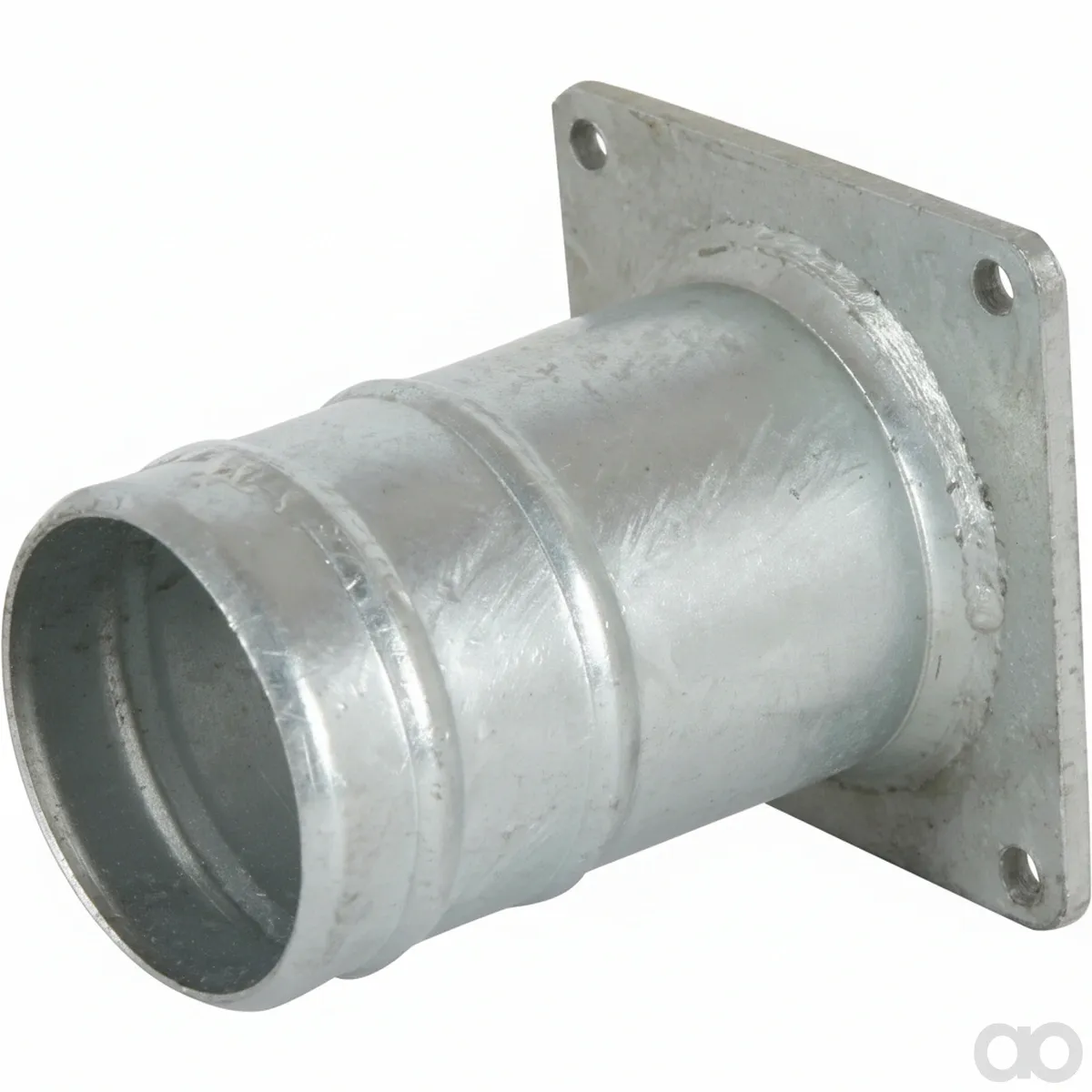

Prillinger-00381367 - Steel flange straight with hose (00381367)
Prillinger-00381367 - Steel flange straight with hose (00381367)

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Prillinger-00381367 - Steel flange straight with hose (00381367)

Prillinger-00381367 - Steel flange straight with hose (00381367)

€91.57

(Excl. VAT)

Price

(Excl. VAT)

€91.57

Product Description

The Prillinger 00381367 is a genuine steel flange straight with hose assembly, designed for hydraulic systems. This robust component features a 1000mm long 2SN hydraulic hose with an inner diameter of 12.7mm and an outer diameter of 23.4mm. It is rated for a maximum operating pressure of 250 bar. Connection 1 is a SAE 3000 PSI 1/2 inch flange with a diameter of 30.2mm and a bolt spacing of 38.1mm. Connection 2 is a swivel nut with M22x1.5 thread. The assembly weighs 1.1 kg.
Prillinger
Prillinger specializes in agricultural machinery components, including gearboxes and driveline systems for tractors. The brand provides high-performance parts for tillage, seeding, and harvesting equipment. Its products are known for precision engineering and reliability in field operations. Shop more than 19,118 genuine Prillinger spare parts.

Product Details

Brand
Prillinger
Connection 1 Type
SAE 3000 PSI Flange
Connection 2 Type
Swivel Nut
Hose Type
2SN
Length (mm)
1000
Operating Pressure (bar)
250
Weight (kg)
1.1
Hose Inner Diameter (mm)
12.7
Hose Outer Diameter (mm)
23.4
Flange Size
1/2 inch
Flange Diameter (mm)
30.2
Bolt Spacing (mm)
38.1
Thread Size
M22x1.5
Nominal Width DN
12
Manufacturer
Prillinger
