Home
Transmission, Drivetrain & Brakes
Drivetrain Parts
Drive Shafts

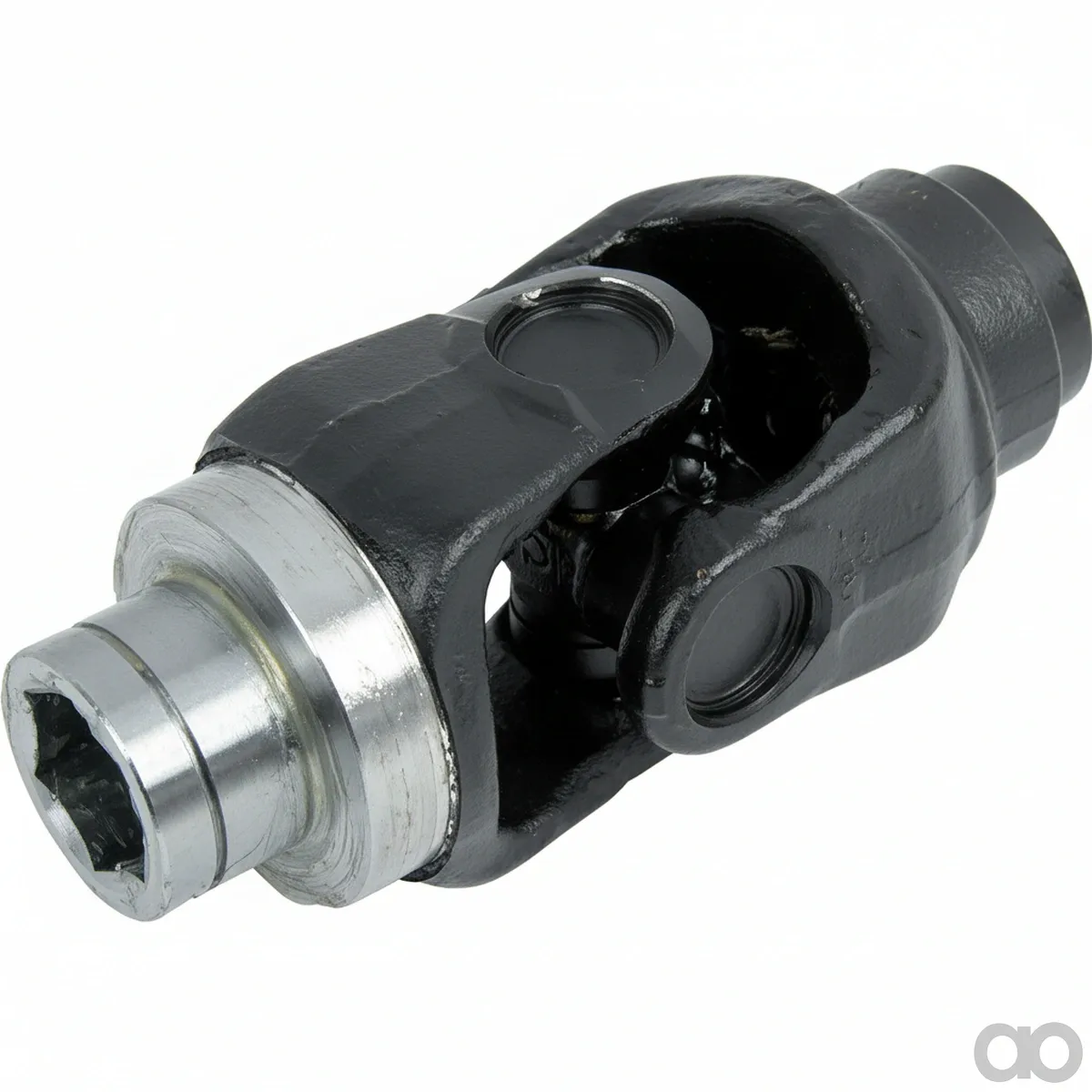

Prillinger-00453316 - Complete Single Joint, Original (00453316)
Prillinger-00453316 - Complete Single Joint, Original (00453316)

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Prillinger-00453316 - Complete Single Joint, Original (00453316)

Prillinger-00453316 - Complete Single Joint, Original (00453316)

€511.44

(Excl. VAT)

Price

(Excl. VAT)

€511.44

Product Description

The Prillinger 00453316 is a genuine complete single joint cardan shaft, also known as a PTO shaft, designed for agricultural machinery. It features a retracted length of 800mm and is equipped with a 32mm diameter and 90mm length cross kit. Both the tractor and implement sides have a 1 3/8" 6-spline connection. This Series 1 shaft delivers 25 kW (440 Nm) at 540 rpm and 39 kW (370 Nm) at 1000 rpm, ensuring reliable power transmission.
Prillinger
Prillinger specializes in agricultural machinery components, including gearboxes and driveline systems for tractors. The brand provides high-performance parts for tillage, seeding, and harvesting equipment. Its products are known for precision engineering and reliability in field operations. Shop more than 19,118 genuine Prillinger spare parts.

Product Details

Brand
Prillinger
Retracted Length (mm)
800
Cross Kit Diameter (mm)
32
Cross Kit Length (mm)
90
Profile Tube
1A
Tractor Side Connection
1 3/8" 6-spline
Implement Side Connection
1 3/8" 6-spline
Power At 540 RPM (kW)
25
Power At 1000 RPM (kW)
39
Torque At 540 RPM (Nm)
440
Torque At 1000 RPM (Nm)
370
Series
1
Weight (kg)
6.5
Manufacturer
Prillinger

Similar items you might like

  • Prillinger

    Prillinger - 00453313 - Collar Bushing Instead of Deutz

    Prillinger

    €75.97

  • Prillinger

    Prillinger - 00453310 - Pressure Spring Instead of Deutz

    Prillinger

    €13.31

  • Prillinger

    Prillinger - 00453309 - Adjusting Lever Instead of Deutz

    Prillinger

    €64.08

  • Prillinger

    Prillinger - 00453301 - Joint Bolt Instead of VF16

    Prillinger

    €141.11

  • Prillinger

    Prillinger - 00453300 - Bushing Instead of VF16607803

    Prillinger

    €60.24

  • Prillinger

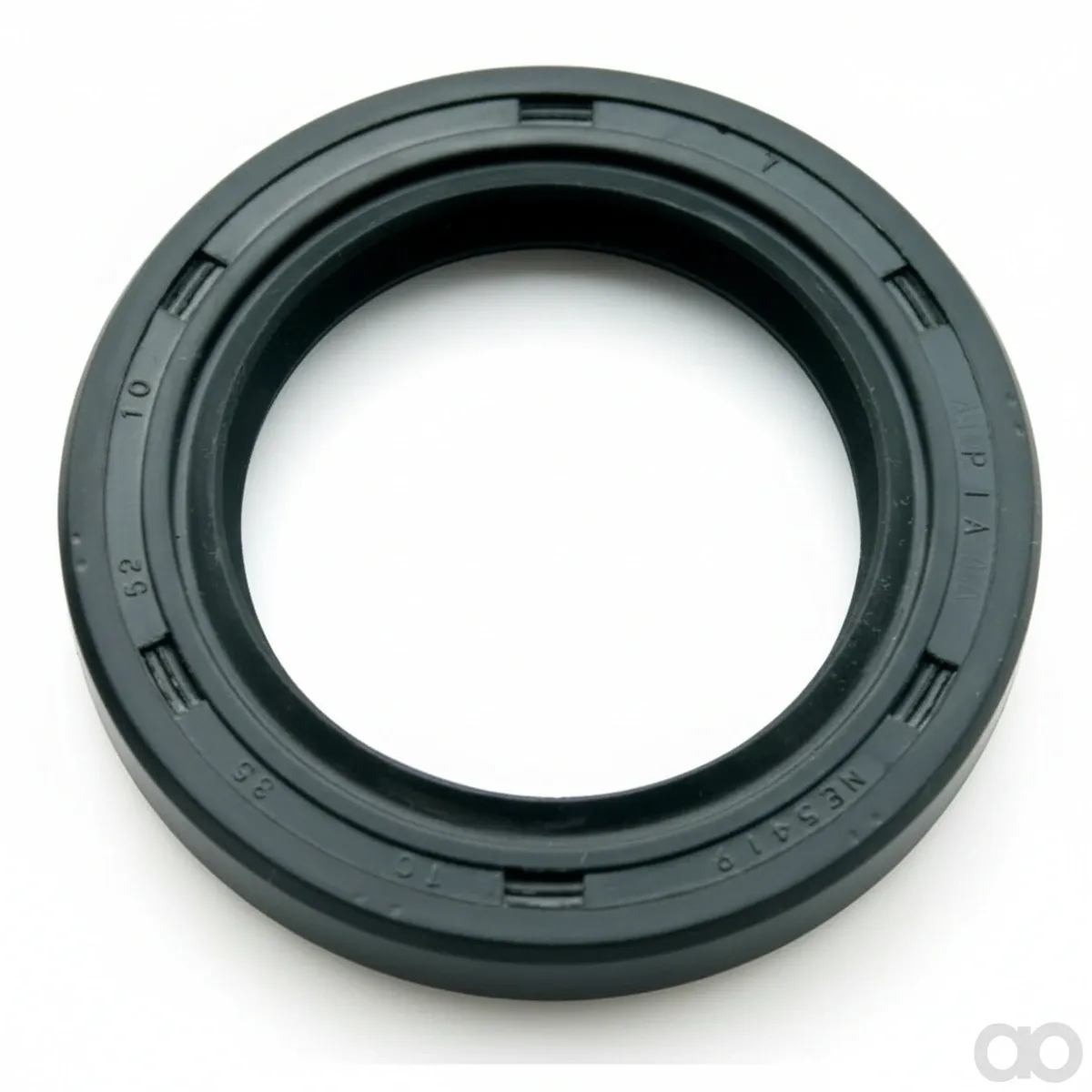

    Prillinger - 009451074 - Shaft Seal Ring Diameter 16 X 30 X 6

    Prillinger

    €12.96

  • Prillinger

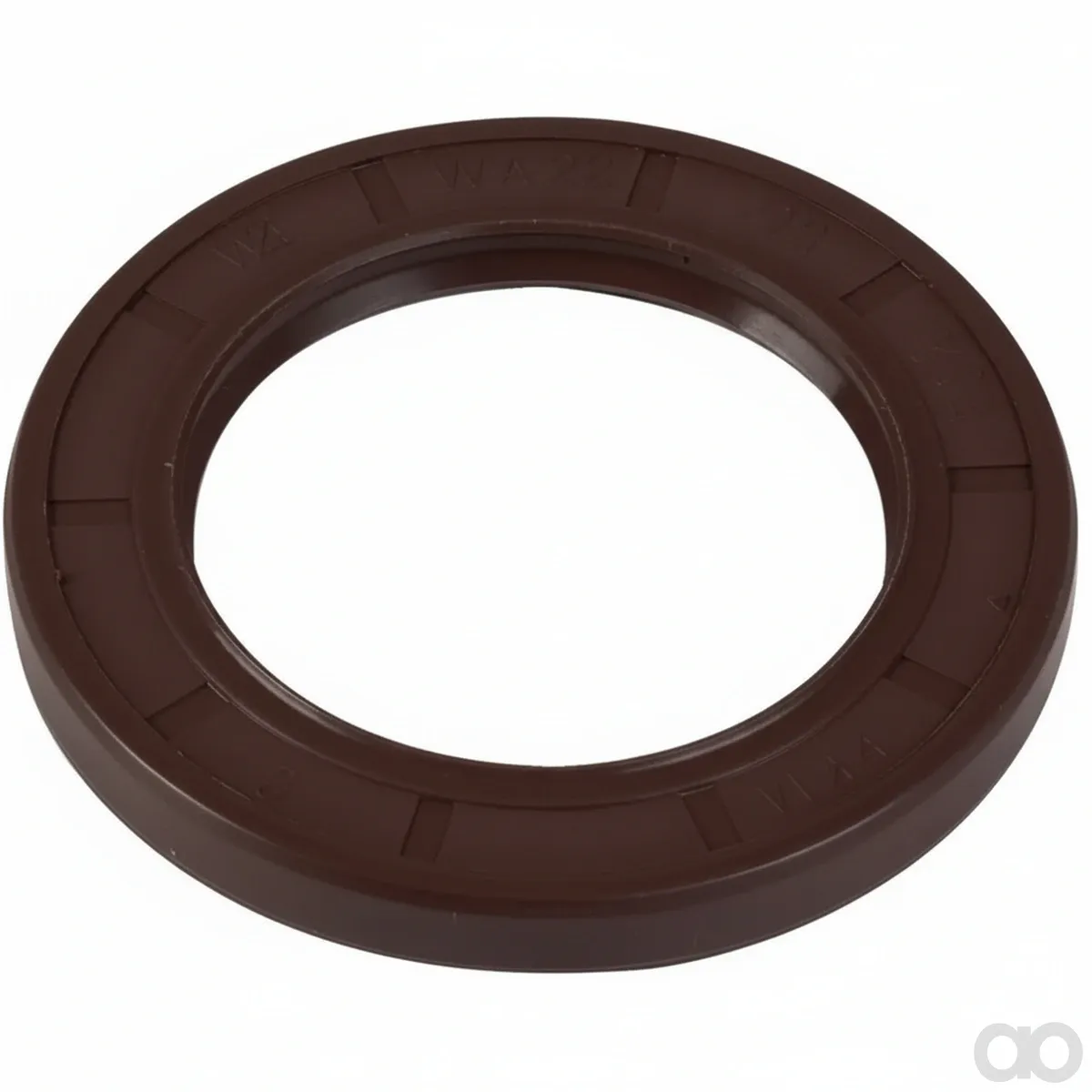

    Prillinger - 009451000 - WDR - ASL 5X 15X 5

    Prillinger

    €31.52

  • Prillinger

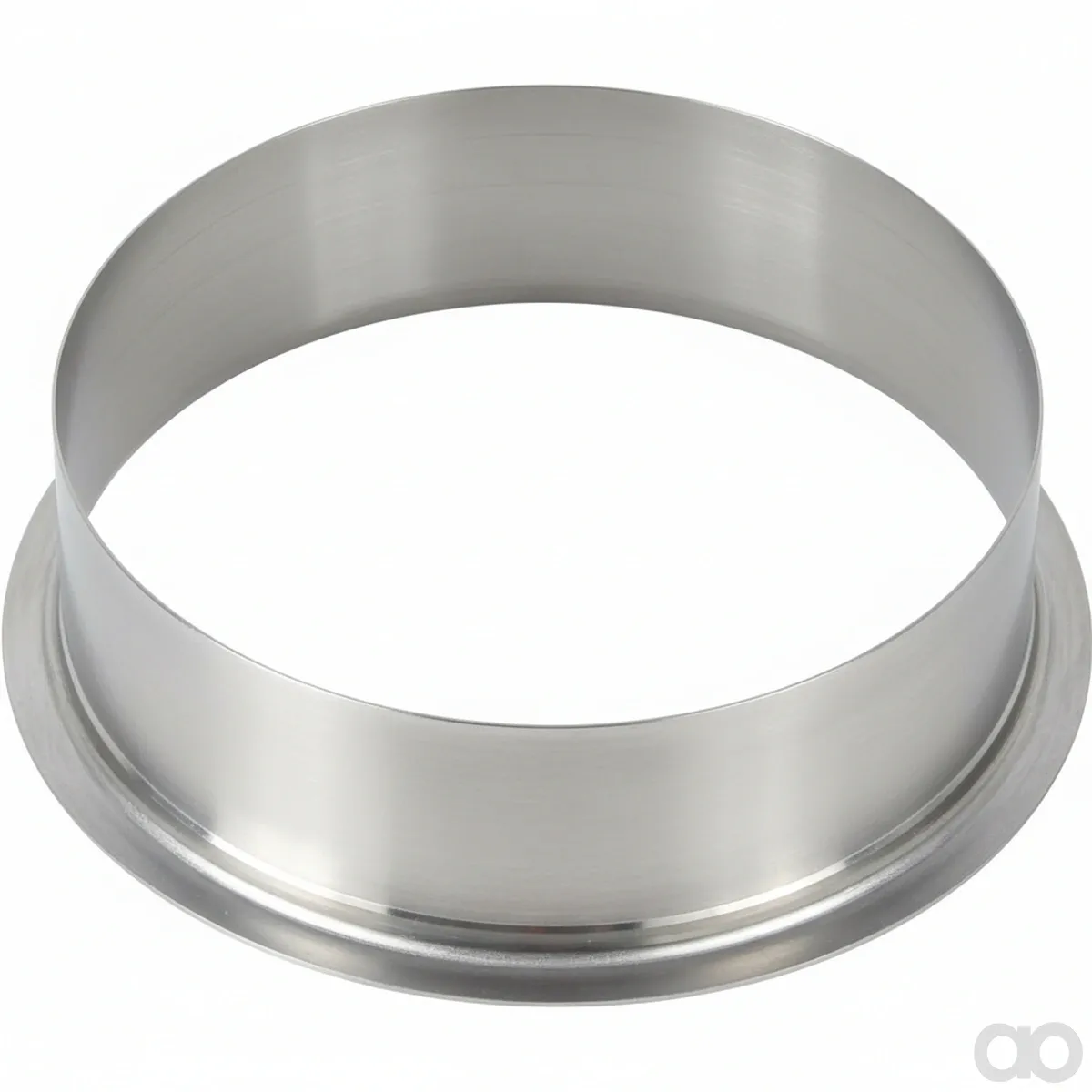

    Prillinger - 00945046 - Wave Protection Sleeve 95 mm for We
