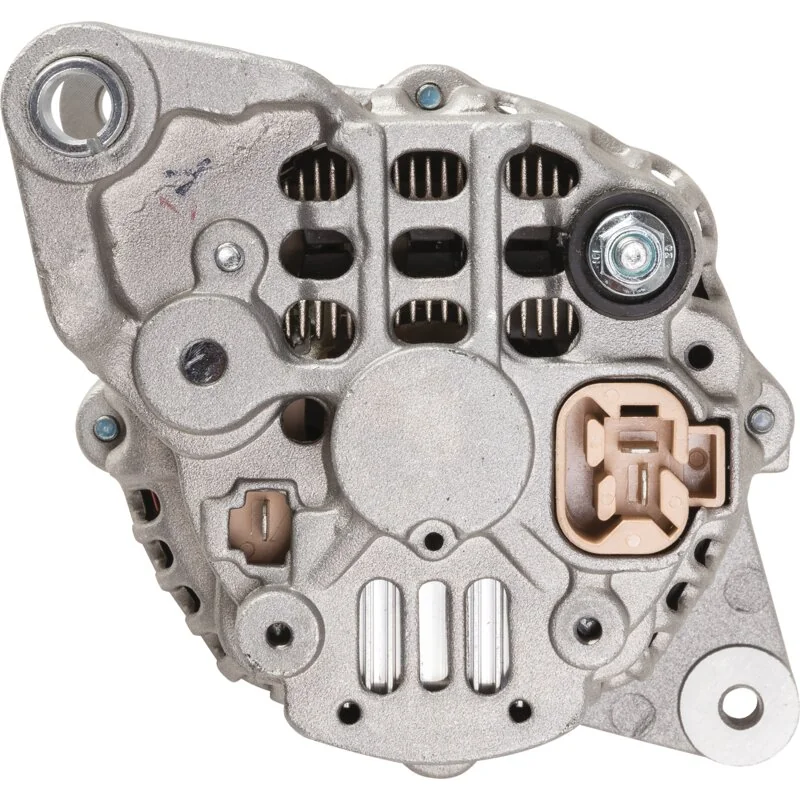

Prillinger Premium - 00133470 - Alternator

SKU: prillinger-premium-00133470

Prillinger Premium - 00133470 - Alternator

€201.54€172.26 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€201.54

IMPORTANT NOTE! Before all work on electrical components, these must be de-energized. This means: First disconnect the ground cable (-) of the battery, then disconnect the positive cable (+). The alternator (generator) shaft must always be fixed with a suitable counter-holder (hexagon socket or multi-tooth) and the pulley nut tightened with a torque wrench (do not use an impact wrench). For some pulleys, it is necessary to add shims to properly press the bearing into its seat. Tightening torque: M16 x 1,5 95Nm +/- 5Nm. M27 x 1,5 152Nm +/- 17,5Nm
Prillinger Premium

Brand
Prillinger Premium
Type
2
Angle (°)
0
Current (A)
40
Length (mm)
82
Voltage (V)
14
W-Connection
Ja
Length Max (mm)
170
Connection Thread
M8
Hole Spacing (mm)
160
Inner Diameter (mm)
12
Outer Diameter (mm)
115
Pulley Diameter (mm)
73.5 mm
Manufacturer
Prillinger Premium
