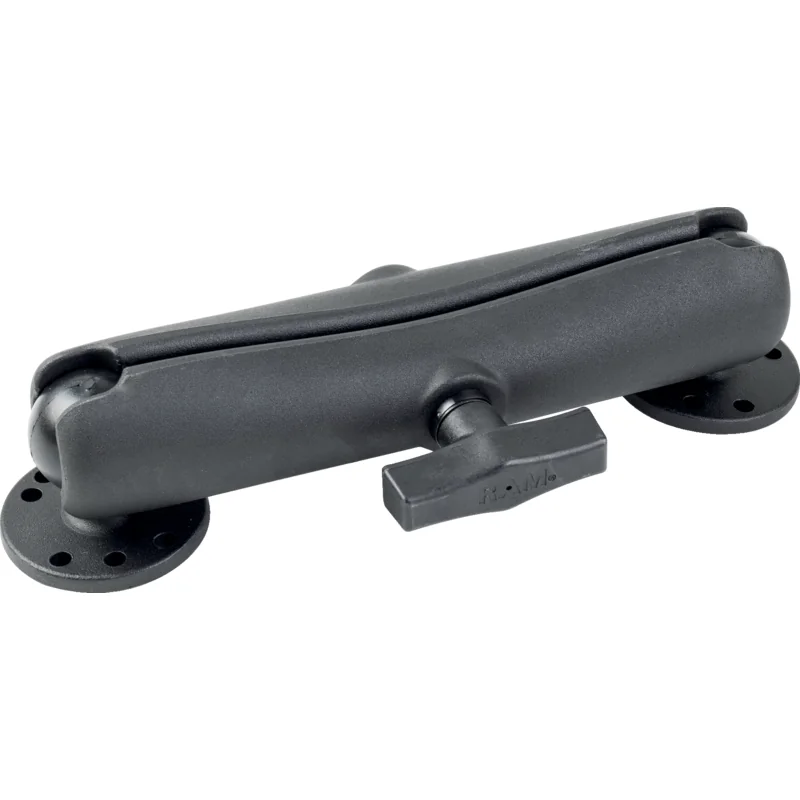

RAM Mounts - RAM-101U-B - Mounting kit

This complete RAM Mounts C-ball set - RAM-101U-B - consists of a short connecting arm (approx. 90 mm) and two base plates with universal AMPS hole pattern. The patented ball system in conjunction with the arm enables numerous mounting solutions with different viewing angles. Mounts with C-balls are suitable for device weights up to max. 4,25 kg. Technical data of the individual components: Connecting arm: 88,9 mm total length, 57,15 mm socket-to-socket length, receptacles for C-balls (1.5 inch) Base plates: 63,5 mm base plate diameter, C-ball (1.5 inch), AMPS hole pattern Material: powder-coated aluminum Ball diameter: 38,1 mm (1.5 inch, C-ball) Color: black Weight: approx. 404 g
