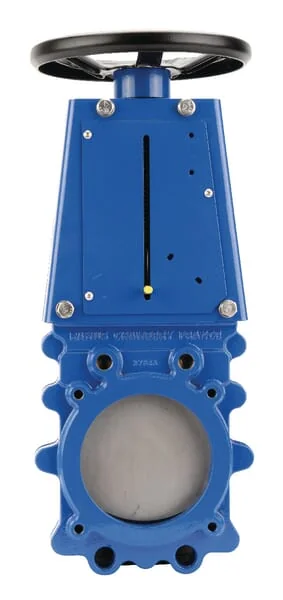

Ramus - VGRH200 - Knife Valve + Hand Wheel DN200
Ramus - VGRH200 - Knife Valve + Hand Wheel DN200
Ramus - VGRH200 - Knife Valve + Hand Wheel DN200
Ramus - VGRH200 - Knife Valve + Hand Wheel DN200
Ramus - VGRH200 - Knife Valve + Hand Wheel DN200
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Ramus - VGRH200 - Knife Valve + Hand Wheel DN200

Ramus - VGRH200 - Knife Valve + Hand Wheel DN200

€883.12

(Excl. VAT)

Price

(Excl. VAT)

€883.12

Product Details

Brand
Ramus
Unit
Each
Benefits
No stagnant areas Perfect bi-directional seal
Properties
Two-piece body Terminal ring around the plate Transverse seal during operation Refillable sealant Cast metal housing Stainless steel valve plate
E'Spindle height
190 mm
Application range
Waste water treatment plants: untreated waste water, raw sludge, faecal matter etc. Biogas plants: food waste, slurry etc. Sugar industry: beet washing plant etc. Food industry: conveyors for cereals, vegetables etc. Pulp and paper industry
DFlange thickness
60 mm
Max working pressure
2,5 BAR
Type of drive/steering
Hand wheel
ØBHand wheel diameter
300 mm
EWheel to bottom distance
710 mm
Flange mounting holes number
4
ØDNPassage hole nominal diameter
200 mm
FFlange mounting bolts/holes distance
180 mm
APassage hole centre to wheel distance
552 mm
GFlange mounting bolts/holes thread diameter
M12
Manufacturer
Ramus
