Reichhardt - COM3 - ISOBUS retrofit

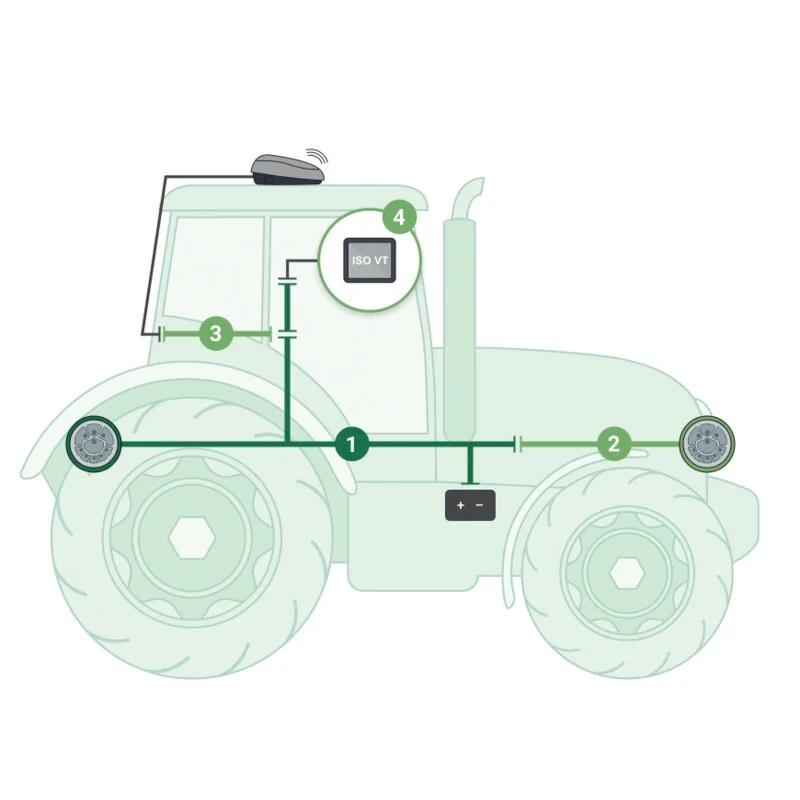

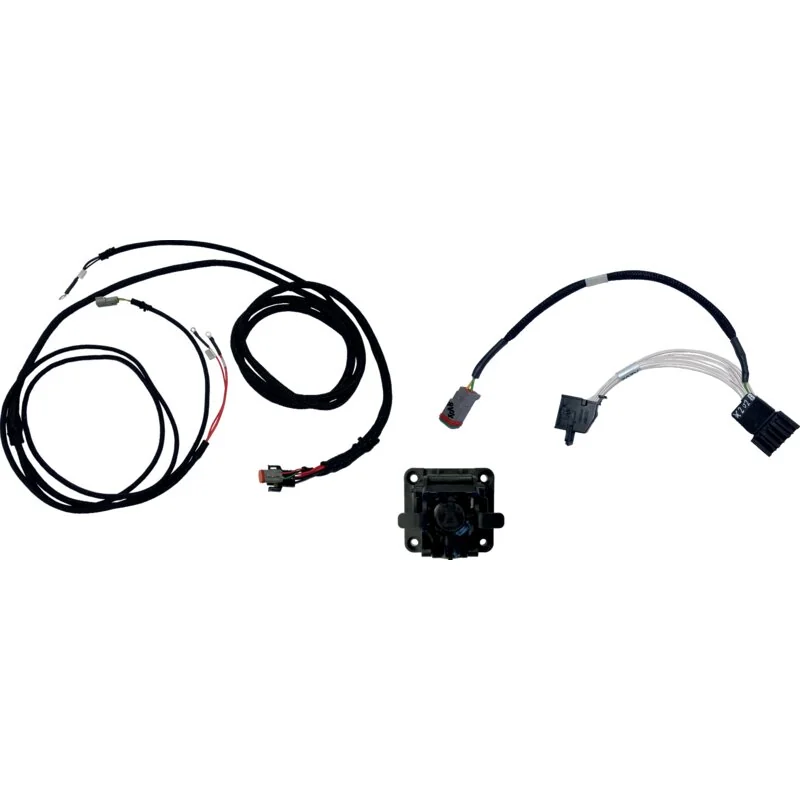

Individual ISOBUS retrofitting with clever modules integrates vehicles that do not yet comply with the ISOBUS standard into modern agricultural operations as required. With ISO FIT for Fendt, the user receives an ISOBUS retrofit cable set specifically for a range of Fendt tractors. For front operation of ISOBUS implements (N-Sensor, front tank,...), the ISO FIT front socket for Fendt is available. It is simply connected Plug&Play via two connectors and is immediately ready for use. Explanation Figure 2 ISO FIT Basic Kit The full-fledged ISOBUS retrofit with ISOBUS rear connector and ISO InCab connector ISOBUS Front Socket Plug & Play for the user of ISOBUS devices in front drive ISOBUS Receiver Adapter Enables the connection of GNSS receivers to ISO FIT via CAN bus or a serial interface ISOBUS Terminal Any ISOBUS terminal can be used Advantages: Can be retrofitted at any time Usable with manufacturer-side ISOBUS ex works Technical data: Length: 3 m Max. continuous current: 60 A Max. ECU current: 25 A Standards: IP 67, ISO 11783
