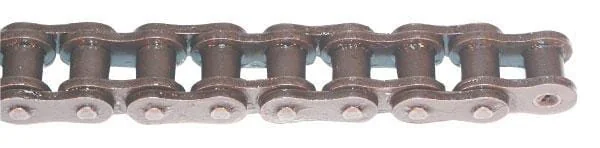

Rexnord - KE50H - Roller Chain ASA 50H

OEM Supplier

SKU: rexnord-ke50h

Rexnord - KE50H - Roller Chain ASA 50H

€22.39

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€22.39

Rexnord
Rexnord manufactures power transmission and motion control solutions for agricultural machinery. The brand provides durable bearings, couplings, and gears used in tractors and harvesting equipment. Its products are designed for high-load applications in demanding farming environments. Shop more than 348 genuine Rexnord spare parts.

Brand
Rexnord
Part Numbers
ke50h
Type
Simplex
Unit
Metre
Weight
1,2 kg/m
pPitch
5/8 Inch
Details
Thicker links
gHeight
15 mm
Benefits
Wear resistant
Properties
Starts and ends with an inner link.
DIN standard
8188
Max. loading
2,2 t
Qty. Rounding
5
Size code ASA
50 H
Size code ISO
10 AH-1
Technical info
Chains up to a pitch of 1 inch: available in lengths of 5 metres Chains with a pitch of over 1 inch: available by the metre (max 5 m)

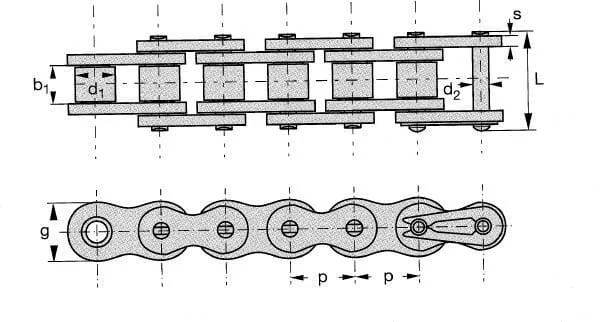

b1Width inside
9,4 mm
d2Pin diameter
5,08 mm
Product category
Roller chain
Application range
Chain drive with regular impact loads
d1Roller diameter
10,16 mm
SThickness outer plate
2,4 mm
Bearing working surface
0,75 cm²
Min. breaking load according to standard
31800 N
Manufacturer
Rexnord
