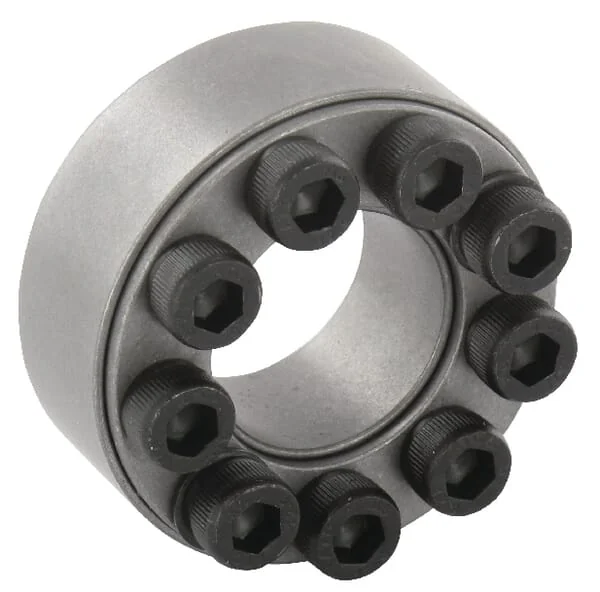

Ringfeder - RFN701230X55 - Ringfeder Ring clamping bushing

SKU: ringfeder-rfn701230x55

Ringfeder - RFN701230X55 - Ringfeder Ring clamping bushing

€111.03€94.90 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€111.03

Brand
Ringfeder
Part Numbers
RFN701230X55
X
- mm
D1
- mm
L2
- mm
L4
- mm
d1.
- mm
Unit
Each
Details
Axle-hub connection without key No axle weakening Ideal at high speed Simple assembly/dismantling Precise centring
LLength
27.5 mm
Benefits
Short assembly time Lower machining costs
Consists of
2 conical half clamps Outer ring Inner ring Pins
L1Length L1
20 mm
L3Length L3
17 mm
Technical info
Shaft tolerance between h8 and h9 Hub tolerance between h8 and h9 Material roughness < 3.2 µm Material: steel C45E
Number of bolts
9
Application range
Axle-hub connection V-pulley Sprockets Fan blade
DOutside diameter
55 mm
TA (Locking torque)
17 N·m
Dg (Clamping thread)
M6 x 18
dDiameter shaft max.
30 mm
dw solid shaft diameter
- mm
pN (Hub pressure at given TA)
100 N/mm²
pW (Shaft pressure at given TA)
183 N/mm²
F ax (Transmissible axial force)
35 kN
T (Transmissible tork at given TA)
529 N·m
Tmax (Maximum transmissible torque
630 N·m
Minimum required outside hub diameter at Rp0,2=200 N/mm²
76 mm
Minimum required outside hub diameter at Rp0,2=300 N/mm²
68 mm
Minimum required outside hub diameter at Rp0,2=400 N/mm²
65 mm
