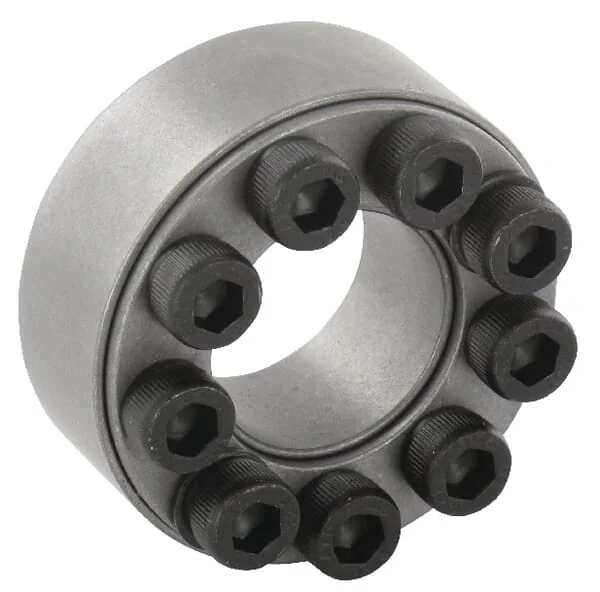

Ringfeder - RFN701235X60 - Locking Assembly

SKU: ringfeder-rfn701235x60

Ringfeder - RFN701235X60 - Locking Assembly

€110.96€94.84 (Excl. VAT)

RRP:€136.78
Save €25.82
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€110.96

Part Number
RFN701235X60
Package length (mm)
82
Package width (mm)
71
Package height (mm)
50
X
- mm
D1
- mm
L2
- mm
L4
- mm
d1.
- mm
Unit
Each
LLength
27.5 mm
Benefits
Short assembly time Lower machining costs
Consists of
2 conical half clamps Outer ring Inner ring Pins
L1Length L1
20 mm
L3Length L3
17 mm
Technical info
Shaft tolerance between h8 and h9 Hub tolerance between h8 and h9 Material roughness < 3.2 µm Material: steel C45E
Number of bolts
12
Application range
Axle-hub connection V-pulley Sprockets Fan blade
DOutside diameter
60 mm
TA (Locking torque)
17 N·m
Dg (Clamping thread)
M6 x 18
dDiameter shaft max.
35 mm
dw solid shaft diameter
- mm
pN (Hub pressure at given TA)
121 N/mm²
pW (Shaft pressure at given TA)
208 N/mm²
F ax (Transmissible axial force)
47 kN
T (Transmissible tork at given TA)
815 N·m
Tmax (Maximum transmissible torque
980 N·m
Minimum required outside hub diameter at Rp0,2=200 N/mm²
89 mm
Minimum required outside hub diameter at Rp0,2=300 N/mm²
78 mm
Minimum required outside hub diameter at Rp0,2=400 N/mm²
73 mm
Manufacturer

Axle-hub connection without key No axle weakening Ideal at high speed Simple assembly/dismantling Precise centring
Ringfeder is a brand with a long-standing history, primarily known for its expertise in power transmission and damping technology. The company was founded in 1922 in Germany, initially focusing on friction springs for railway wagons. Over the decades, Ringfeder has evolved, expanding its product portfolio to serve a wider range of industrial and agricultural applications. Today, it operates as part of the VBG Group, a global industrial group based in Sweden, maintaining its German engineering heritage. The brand's core product lines include a variety of coupling and damping solutions. Ringfeder is particularly recognized for its robust shaft couplings, which are crucial for connecting rotating shafts in machinery, and its specialized friction springs, which provide high energy absorption in a compact design. These technologies are integral to ensuring reliable and safe operation in demanding environments, from heavy-duty vehicles to industrial plants. At Partao, you will find a selection of Ringfeder components, particularly within the Drivetrain category. The brand's products are essential for maintaining the integrity and performance of power transmission systems. Ringfeder components are often chosen by manufacturers and operators for their durability and precision engineering. These parts are widely used in agricultural machinery, commercial vehicles, and various industrial applications where reliable power transmission and effective damping are critical for operational efficiency and equipment longevity, particularly in regions requiring robust solutions for heavy loads. Shop more than 55 genuine Ringfeder spare parts.
