Rittal - KX1546000 - Enclosure

Rittal - KX1546000 - Enclosure

€80.39

(Excl. VAT)

Price

(Excl. VAT)

€80.39

Number of products

Product Description

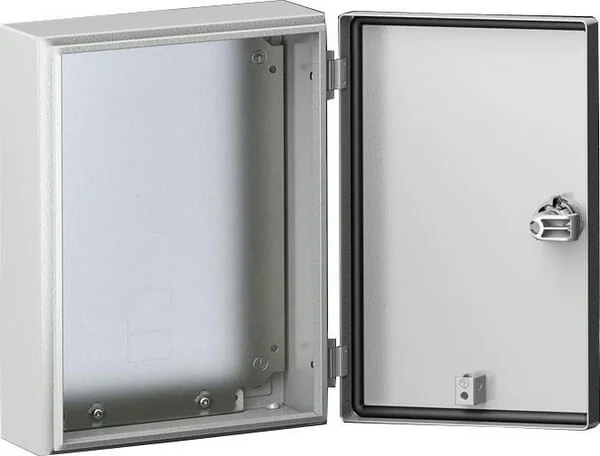

The compact sheet steel KX enclosure offers high ease of installation and flexibility in the choice of latch systems.

Rittal

Product Details

Brand

Unit

Box

Depth

80 mm

Width

200 mm

Height

200 mm

Includes

Enclosure with door 180° hinge Mounting plate Cam lock with 3 mm double-bit insert

Couplable

No

With cover

Yes

EMC-version

No

Corner model

No

Freestanding

No

Pitched roof

No

Wall mounting

Yes

Housing colour

Grey

Pole fastening

Yes

With rear door

No

Number of doors

1

Number of locks

1

RAL colour code

7035

Housing material

Steel

Insulation class

66

With glazed door

No

Surface protection

Powder-coated

With mounting plate

Yes

Intermediate mounting

No

With ventilation door

No

Manufacturer Product ID

1546000

Floor standing wall model

No

Impact strength class code

IK08

Suitable for wall built-in

No

Suitable for outdoor set-up

No

Suitable for metrical mounting

No

Mounting plate depth-adjustable

No

Max. permissible load of the door(s) according to IEC 62208

50 N

Max. permissible load of the enclosure according to IEC 62208

200 N

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890

13 W

Max. permissible load of the mounting plate according to IEC 62208

100 N

Manufacturer

Rittal
