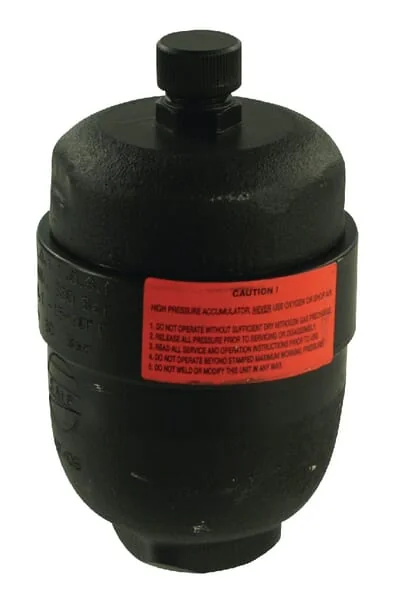

Saip - LAV050 - ACCUMULATOR

SKU: saip-lav050

Saip - LAV050 - ACCUMULATOR

€100.85

(excl. VAT)

In stock - ready to ship

Ships within 96 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€100.85

Fit the accumulators vertically with the gas valve pointing upwards Fill with nitrogen only The volume indicator indicates the total volume (V0) of the accumulator The ratio of operating pressure to initial stressing pressure must not exceed 6:1 The initial stressing pressure must not exceed 90% of working pressure Field of application: agriculture, forestry, construction machinery, suspension systems and to compensate hydraulic leakage
Saip
Saip produces agricultural machinery, including rotary tillers and soil preparation equipment. The brand focuses on robust and efficient tools for small to medium-scale farming operations. Its products are designed for precision and reliability in field work. Shop more than 102 genuine Saip spare parts.

Brand
SAIP
Part Numbers
lav050
Pros
The accumulator can be filled to the correct pressure if desired Complies with Pressure Equipment Directive (PED) Long service life
Type
Membrane
Unit
Each
Volume
500 cm³
Weight
4,1 kg
Material
Steel
ATotal length
172 mm
Pitch of thread
1.50 mm
Product details
Fit the accumulators vertically with the gas valve pointing upwards Fill with nitrogen only The volume indicator indicates the total volume (V0) of the accumulator The ratio of operating pressure to initial stressing pressure must not exceed 6:1 The initial stressing pressure must not exceed 90% of working pressure Field of application: agriculture, forestry, construction machinery, suspension systems and to compensate hydraulic leakage
Membrane material
Nitrile rubber [NBR]
Surface treatment
Primed
Classification code
I
Gas valve thread type
UNF
Max. working pressure
210 BAR
Inside thread diameter
M18
BOutside width/diameter
116 mm
Gas valve thread diamter
5/8 Inch
Max. working temperature
80 °C
Min. working temperature
-15 °C
Admissible pressure ratio
6:1
Pre-charge default pressure
30 BAR
Manufacturer
SAIP
