Scharmüller - 00654410A02 - Ring Eye
Scharmüller - 00654410A02 - Ring Eye
Scharmüller - 00654410A02 - Ring Eye
Scharmüller - 00654410A02 - Ring Eye

In stock - ready to ship

Order now for delivery between 12 May and 15 May
Free shipping

Pay Securely with

Scharmüller - 00654410A02 - Ring Eye

Scharmüller - 00654410A02 - Ring Eye

€348.01

(Excl. VAT)

Price

(Excl. VAT)

€348.01

Product Description

The Scharmüller 00654410A02 is a genuine 40 mm drawbar eye designed for welding applications, ensuring robust and secure connections for agricultural trailers and implements. Manufactured from high-quality forged steel, this drawbar eye is ECE R55 approved, guaranteeing compliance with European safety standards. It features a D-value of 100 kN, a Dc-value of 75 kN, an S-value of 1000 kg, and a V-value of 35 kN. With a weight of 5.6 kg and precise dimensions including a 40 mm inner eye diameter and 110 mm bolt hole spacing, it provides reliable performance for heavy-duty towing.
Scharmüller
Scharmüller specializes in tractor attachments and implements for farming and forestry. The brand offers front loaders, bale handlers, and logging equipment designed for heavy-duty use. Its products are engineered for durability and seamless integration with tractor hydraulic systems. Shop more than 896 genuine Scharmueller spare parts.

Product Details

Brand
Scharmüller
Unit
Each
Colour
Black
DCvalue
102.4 kN
Properties
Ring towing eyes 50mm Similar to DIN 9678
Total length
252 mm
Working length
252 mm
Thread diameter
M20
Application range
Mainly for use on heavy agricultural and forestry trailers
Max. vertical load
3000 kg
Mounting holes number
8
Max. mounting holes distance
145 mm
Min. mounting holes distance
145 mm
Towing eye inside diameter (main hole)
50 mm
Manufacturer
Scharmüller

Similar items you might like

  • Scharmüller

    Scharmüller - 00653900A02 - Flenstrekoog Vertical K80

    Scharmüller

    €495.25

  • Scharmüller

    Scharmüller - 00656821A02 - Ball Pull Eye

    Scharmüller

    €709.28

  • Scharmüller

    Scharmüller - 00659000 - Detachable Pull Eye K80 Poettinger 2-Hole 24.5mm

    Scharmüller

    €604.41

  • Scharmüller

    Scharmüller - 00656920A02 - Angle Pull Eye K80 LA90mm B70mm 2

    Scharmüller

    €709.28

  • Scharmüller

    Scharmüller - 006620200 - Sleepoog K50 with Adjustable Pen

    Scharmüller

    €194.46

  • Scharmüller

    Scharmüller - 006634500 - Swivel Drawbar Eye D50 L315

    Scharmüller

    €220.53

  • Scharmüller

    Scharmüller - 00661920 - Scharmuller AS Coupling K80

    Scharmüller

    €492.07

  • Scharmüller

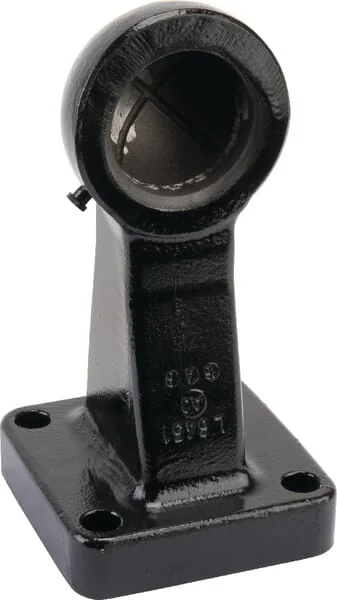

    Scharmüller - 00664911A02 - Pull Eye
