Scharmüller - 00653900A02 - Flenstrekoog Vertical K80

SKU: scharmueller-00653900a02

Scharmüller - 00653900A02 - Flenstrekoog Vertical K80

€577.71€493.77 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€577.71

Part Number
00653900A02
Package length (mm)
310
Package width (mm)
187
Package height (mm)
330
Unit
Each
Colour
Black
Properties
Weight: ±19 kg Tested to ISO 24347
Total width
190 mm
Total length
240 mm
Working length
240 mm
Thread diameter
M20
Application range
Mainly for use on heavy agricultural and forestry rigid axle drawbar trailers. For connection to 80mm coupling ball
Max. vertical load
3000 kg
Mounting holes number
8
Max. mounting holes distance
130 mm
Min. mounting holes distance
130 mm
Towing eye inside diameter (main hole)
80 mm
EAN
8716106712458
Manufacturer

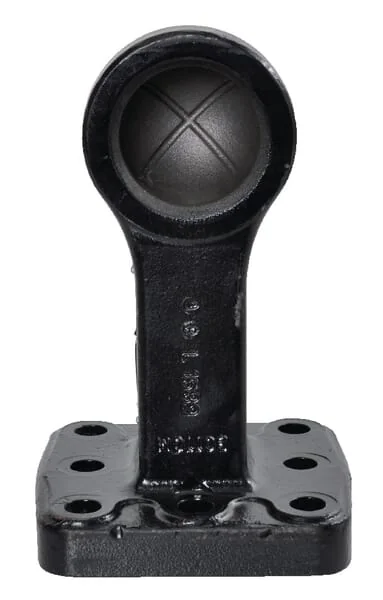

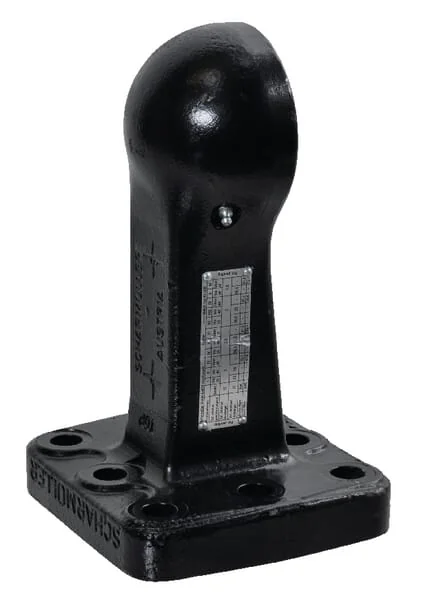

The Scharmüller 00653900A02 is a genuine K80 vertical flange ball coupling designed for robust use with agricultural tractors and machinery. It features a D-value of 100 kN and an S-value of 3000 kg, ensuring reliable and secure towing. The coupling is equipped with a 160x160 mm bolt pattern and 26 mm diameter holes for secure mounting. Weighing 26.5 kg, this high-quality component provides durable performance in demanding agricultural applications.
Scharmüller
Scharmüller specializes in tractor attachments and implements for farming and forestry. The brand offers front loaders, bale handlers, and logging equipment designed for heavy-duty use. Its products are engineered for durability and seamless integration with tractor hydraulic systems. Shop more than 1,475 genuine Scharmüller spare parts.
