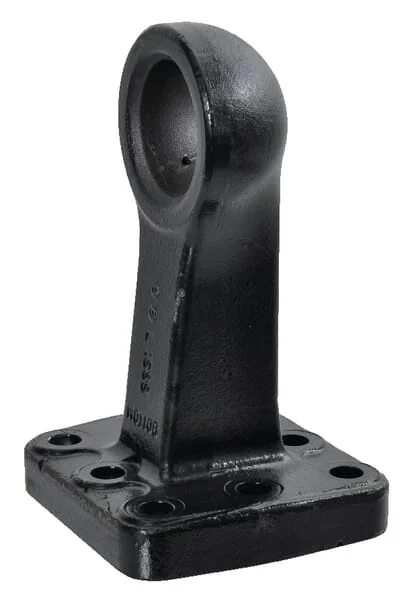

Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347
Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347
Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347
Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347
Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347
Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347

Scharmüller - 006539010A02 - Towing Eye With Flange K80® 130x130 ISO 24347

€387.88

(Excl. VAT)

Price

(Excl. VAT)

€387.88

Product Details

Brand
Scharmüller
Unit
Each
Colour
Black
Thread
M20
DCvalue
120.2 kN
Capacity
4000 kg
Properties
Weight: ±19 kg Tested to ISO 24347
Total width
190 mm
Discharge_mm
240 mm
Total length
240 mm
Working length
240 mm
Number of holes
8
Thread diameter
M20
Application range
Mainly for use on heavy agricultural and forestry rigid axle drawbar trailers. For connection to 80mm coupling ball
Max. vertical load
4000 kg
Mounting holes number
8
Max. mounting holes distance
130 mm
Min. mounting holes distance
130 mm
Towing eye inside diameter (main hole)
80 mm
Manufacturer
Scharmüller
