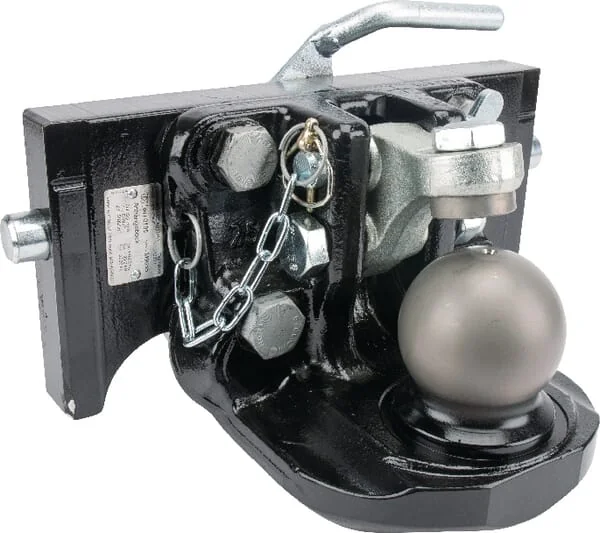

Scharmüller - 03632041A02 - Tow Ball Coupler K80 320mm
Scharmüller - 03632041A02 - Tow Ball Coupler K80 320mm
Scharmüller - 03632041A02 - Tow Ball Coupler K80 320mm
Scharmüller - 03632041A02 - Tow Ball Coupler K80 320mm
Scharmüller - 03632041A02 - Tow Ball Coupler K80 320mm
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Scharmüller - 03632041A02 - Tow Ball Coupler K80 320mm

Scharmüller - 03632041A02 - Tow Ball Coupler K80 320mm

€950.08

(Excl. VAT)

Price

(Excl. VAT)

€950.08

Product Details

Brand
Scharmüller
Type
K80® Manual
Unit
Each
Colour
Black
Benefits
Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Extra info
Height Adjustable with Grabhandle
Properties
Optional retrofit with forced steering (right, left, both sides)
Track width
320 mm
Working length
150 mm
Thread diameter
M20
Track thickness
38 mm
Application range
Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Adapter plate height
160 mm
Locking pin diameter
25 mm
Max. permissible D-Value
83,9 kN
Max. permissible vertical load
2000 kg
Manufacturer
Scharmüller
