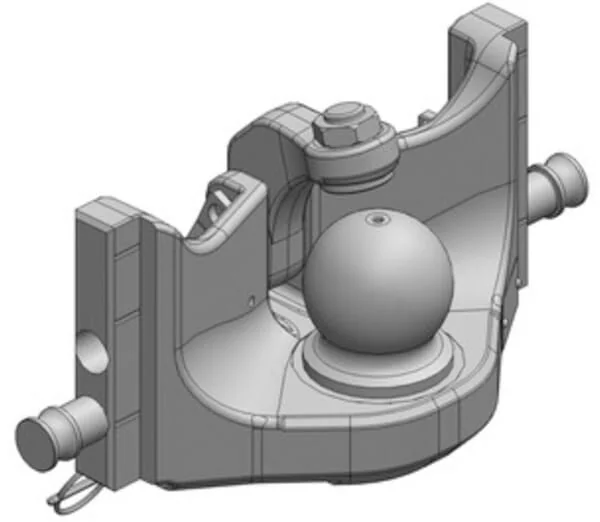

Scharmüller - 05631451A02 - Tow Ball Coupler K80 314mm
Scharmüller - 05631451A02 - Tow Ball Coupler K80 314mm
Scharmüller - 05631451A02 - Tow Ball Coupler K80 314mm
Scharmüller - 05631451A02 - Tow Ball Coupler K80 314mm

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

Scharmüller - 05631451A02 - Tow Ball Coupler K80 314mm

Scharmüller - 05631451A02 - Tow Ball Coupler K80 314mm

€785.44

(Excl. VAT)

Price

(Excl. VAT)

€785.44

Product Details

Brand
Scharmüller
Type
K80® Manual
Unit
Each
Colour
Black
Benefits
Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Properties
Optional retrofit with forced steering (right, left, both sides)
Track width
314 mm
Working length
57 mm
Track thickness
30 mm
Application range
Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Adapter plate height
160 mm
Locking pin diameter
20 mm
Max. permissible D-Value
89,3 kN
Max. permissible vertical load
4000 kg
Manufacturer
Scharmüller
