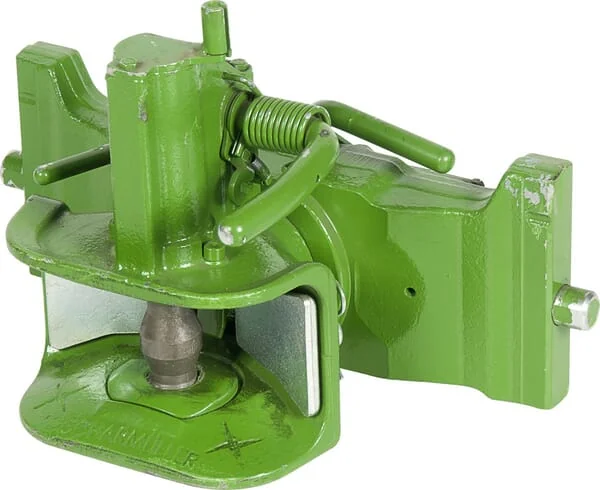

Scharmüller - 073903281A17 - Trailer Coupling JD 390mm
Scharmüller - 073903281A17 - Trailer Coupling JD 390mm
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Scharmüller - 073903281A17 - Trailer Coupling JD 390mm

Scharmüller - 073903281A17 - Trailer Coupling JD 390mm

€845.87

(Excl. VAT)

Price

(Excl. VAT)

€845.87

Product Details

Brand
Scharmüller
Type
Automatic clevis
Unit
Each
Colour
Green
Type code
CH-I
Properties
German model
Consists of
Trailer coupling Exclusive remote control
Track width
390 mm
Manufacturer
Scharmüller
Track thickness
32 mm
Application range
Internal elements for height adjustment frame For towing eyes in accordance with DIN 11026/11043/74054
Pull pin diameter
38 mm
Adapter plate height
160 mm
Locking pin diameter
25 mm
Max. permissible D-Value
97,1 kN
Max. permissible vertical load
2500 kg
Manufacturer
Scharmüller
