Mains voltage
200.0-240.0 V
Technical info

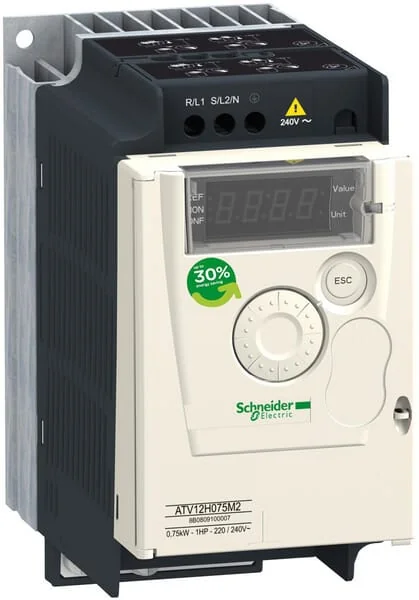

The Altivar 12 drive is a frequency inverter for three-phase 2 00…240 V asynchronous motors rated from 0.18 kW to 4 kW. The Altivar 12 's ease of installation, based on the principle of Plug&Play, its compact size, its integrated functions and its alternative base plate version make it particularly suitable for applications involving simple industrial machines and certain consumer machines. By taking account of the constraints governing installation and use at the product design stage, we have been able to offer a reliable, cost-effective solution to manufacturers of compact simple machines (OEMs) and installers.
Mains frequency
50 Hz60 Hz
Type of converter
U converter
Max. line current (A)
10.2 A
Max. output frequency
400 Hz
Output Frequency (Hz)
0,5…400 Hz
Manufacturer Product ID
ATV12H075M2
Number of digital inputs
4
Primary power supply (V)
200….240V 50/60Hz
Number of analogue inputs
1
Number of digital outputs
1
Nominal output current I2N
4,2 A
Number of analogue outputs
1
Number of HW-interfaces USB
0
Supporting protocol for ASI
No
Supporting protocol for CAN
No
Supporting protocol for KNX
No
Supporting protocol for LON
No
4-quadrant operation possible
No
Number of HW-interfaces other
8
Number of interfaces PROFINET
0
Integrated breaking resistance
No
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Supporting protocol for BACnet
No
Supporting protocol for Modbus
Yes
Supporting protocol for SERCOS
No
Supporting protocol for TCP/IP
No
Supporting protocol for SUCONET
No
Number of HW-interfaces parallel
0
Supporting protocol for INTERBUS
No
Supporting protocol for PROFIBUS
No
Supporting protocol for DeviceNet
No
Supporting protocol for PROFIsafe
No
Transient current for 60 sec max.
6.3 A
Number of HW-interfaces serial TTY
0
Supporting protocol for EtherNet/IP
No
Supporting protocol for PROFINET IO
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for Data-Highway
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for INTERBUS-Safety
No
Application in industrial area permitted
Yes
Relative symmetric net voltage tolerance
10 %
Supporting protocol for DeviceNet Safety
No
Supporting protocol for other bus systems
No
Relative symmetric net frequency tolerance
5 %
Number of HW-interfaces industrial Ethernet
0
Supporting protocol for Foundation Fieldbus
No
Dissipated power at maximum output current (W)
44 W
Max. output at linear load at rated output voltage
0,8 kA
Supporting protocol for AS-Interface Safety at Work
No
Max. output at quadratic load at rated output voltage
0,8 kA
Application in domestic- and commercial area permitted
Yes
Manufacturer
Schneider-Electric
