Schneider Electric - LRD05 - Overload Relay 0.63-1.00A
Schneider Electric - LRD05 - Overload Relay 0.63-1.00A
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Schneider Electric - LRD05 - Overload Relay 0.63-1.00A

Schneider Electric - LRD05 - Overload Relay 0.63-1.00A

€76.32

(Excl. VAT)

Price

(Excl. VAT)

€76.32

Product Description

The Schneider Electric LRD05 is a genuine TeSys LRD thermal overload relay designed for robust motor protection in industrial applications. This 3-pole relay offers an adjustable thermal protection range from 0.63A to 1.00A, with a tripping class of 10A, ensuring reliable protection against overloads and phase failures. It features a manual reset function and is specifically engineered for direct mounting under TeSys D contactors, providing a compact and integrated solution. The LRD05 is suitable for various AC and DC control circuits, offering high reliability and durability for demanding operational environments.
Schneider Electric
Schneider Electric is a global specialist in energy management and automation, with a history dating back to 1836 when it was founded in France by Eugène and Adolphe Schneider. Initially involved in the iron and steel industry, the company evolved through the 20th century to focus on electricity, automation, and industrial control. Today, Schneider Electric is headquartered in Rueil-Malmaison, France, and is a multinational corporation providing integrated solutions across various sectors, including infrastructure, data centers, industrial, and residential applications. The brand is renowned for its comprehensive portfolio of products and solutions designed to make energy safe, reliable, efficient, sustainable, and connected. This includes a wide range of electrical distribution components, industrial automation and control systems, software, and services. While not a direct manufacturer of agricultural machinery, Schneider Electric's components are integral to the advanced control systems, motor drives, and energy management solutions found in modern agricultural equipment and smart farming infrastructure. At Partao, we offer a selection of genuine Schneider Electric components that are crucial for the electrical and control systems of agricultural machinery. Our top categories include Alternators, Apparel, Complete Clutch Kits, Control Consoles, and Control Modules, supporting the maintenance of complex systems. Over 606 genuine Schneider Electric spare parts are available at Partao. Agricultural operators and machinery manufacturers integrate Schneider Electric technology to enhance the efficiency, reliability, and automation of their equipment. The brand's focus on innovation in IoT-enabled solutions and energy efficiency helps drive the development of smart farming practices, ensuring robust performance and optimized resource management in demanding agricultural environments.

Product Details

Brand
schneider-electric
Part Numbers
lrd05
Current Range (A)
0.63-1.00
Tripping Class
10A
Poles
3
Control Circuit Voltage Max (V)
600
Mounting Type
direct_under_contactor
Reset Type
manual
Height (mm)
66
Width (mm)
45
Depth (mm)
70
Weight (kg)
0.124
Manufacturer
schneider-electric

Similar items you might like

  • Schneider Electric

    Schneider Electric - LRD06 - Thermal Protection 1-1.7A

    Schneider Electric

    €44.22

  • Schneider Electric

    Schneider Electric - LRD21 - Thermal Protection 12-18A

    Schneider Electric

    €49.64

  • Schneider Electric

    Schneider Electric - LR2K0310 - Thermal Protection 2.6-3.7A

    Schneider Electric

    €59.34

  • Schneider Electric

    Schneider Electric - LP4K0901BW3 - Magnetic Contactor 4kW 24Vdc + Nc

    Schneider Electric

    €34.83

  • Schneider Electric

    Schneider Electric - LRD10 - Thermal Protection 4.0-6.0A

    Schneider Electric

    €48.77

  • Schneider Electric

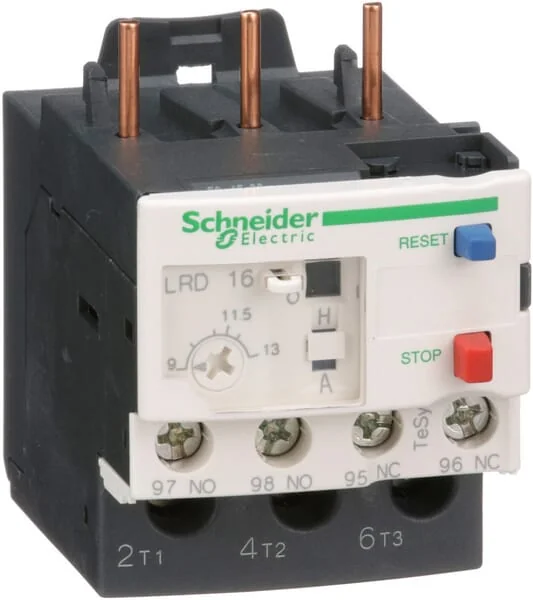

    Schneider Electric - LRD16 - Thermal Protection 9-13A

    Schneider Electric

    €45.52

  • Schneider Electric

    Schneider Electric - PHI179876 - Master Son-T PIA +250W/220 E40

    Schneider Electric

    €45.84

  • Schneider Electric

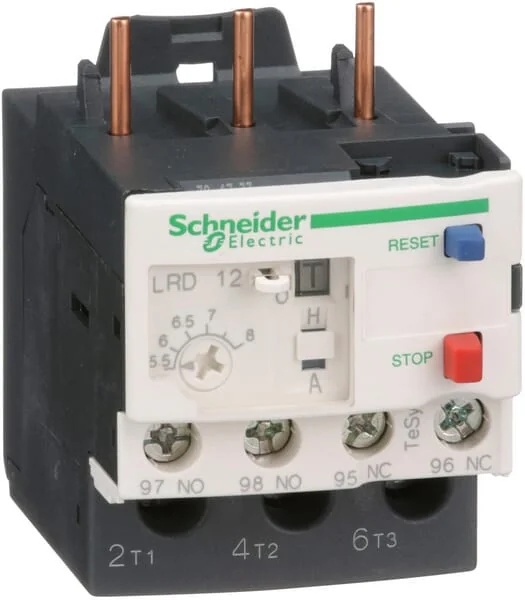

    Schneider Electric - LRD12 - Thermal Protection 5.5-8A
