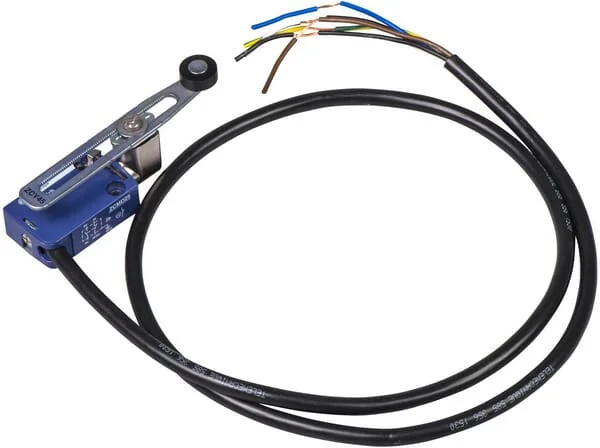

Schneider Electric - XCMD2145L1 - Miniature Limit Switch
Schneider Electric - XCMD2145L1 - Miniature Limit Switch

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Schneider Electric - XCMD2145L1 - Miniature Limit Switch

Schneider Electric - XCMD2145L1 - Miniature Limit Switch

€34.42

(Excl. VAT)

Price

(Excl. VAT)

€34.42

Product Description

The Schneider Electric XCMD2145L1 is a robust miniature limit switch from the OsiSense XC series, designed for industrial control applications. This fixed-body switch features a durable Zamak metal construction for both its body and plunger head. It incorporates a spring return roller plunger operator, allowing for lateral actuation in two directions. The switch is equipped with 1 normally closed (NC) and 1 normally open (NO) snap-action contacts, suitable for power circuits with a rated operational voltage up to 500V AC and 250V DC. It includes a 1-meter PvR insulated cable for electrical connection and boasts high environmental protection ratings of IP66, IP67, IP68, and IK06, ensuring reliable performance in harsh conditions. With a mechanical durability of 10 million cycles and an operating temperature range of -25 to 70 °C, the XCMD2145L1 offers long-lasting and dependable operation.
Schneider Electric
Schneider Electric is a global specialist in energy management and automation, with a history dating back to 1836 when it was founded in France by Eugène and Adolphe Schneider. Initially involved in the iron and steel industry, the company evolved through the 20th century to focus on electricity, automation, and industrial control. Today, Schneider Electric is headquartered in Rueil-Malmaison, France, and is a multinational corporation providing integrated solutions across various sectors, including infrastructure, data centers, industrial, and residential applications. The brand is renowned for its comprehensive portfolio of products and solutions designed to make energy safe, reliable, efficient, sustainable, and connected. This includes a wide range of electrical distribution components, industrial automation and control systems, software, and services. While not a direct manufacturer of agricultural machinery, Schneider Electric's components are integral to the advanced control systems, motor drives, and energy management solutions found in modern agricultural equipment and smart farming infrastructure. At Partao, we offer a selection of genuine Schneider Electric components that are crucial for the electrical and control systems of agricultural machinery. Our top categories include Alternators, Apparel, Complete Clutch Kits, Control Consoles, and Control Modules, supporting the maintenance of complex systems. Over 606 genuine Schneider Electric spare parts are available at Partao. Agricultural operators and machinery manufacturers integrate Schneider Electric technology to enhance the efficiency, reliability, and automation of their equipment. The brand's focus on innovation in IoT-enabled solutions and energy efficiency helps drive the development of smart farming practices, ensuring robust performance and optimized resource management in demanding agricultural environments.

Product Details

Brand
Schneider-Electric
Part Numbers
xcmd2145l1
Unit
Each
Number of NC contacts
1
Number of NO contacts
1
Switching capacity (DC-13 220V)
0,1 A
Lifespan, electrical (Operations)
10x10E6
Lifespan, mechanical (Operations)
5x10E6
Switching capacity (AC-15 230V) (A)
1.5 A
Manufacturer
Schneider-Electric
