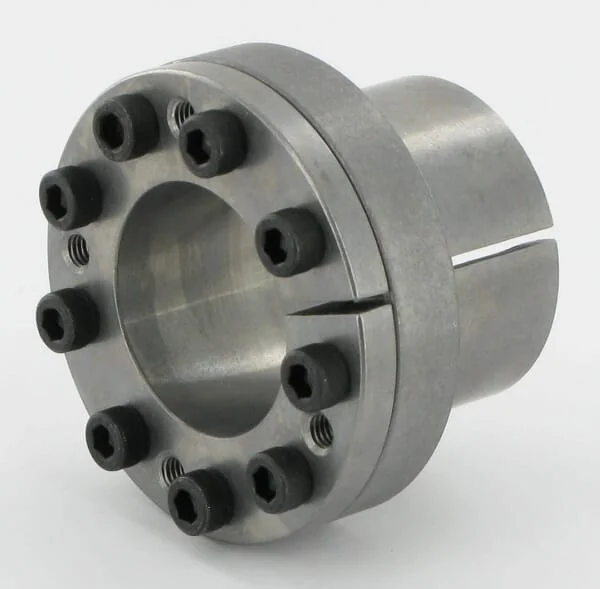

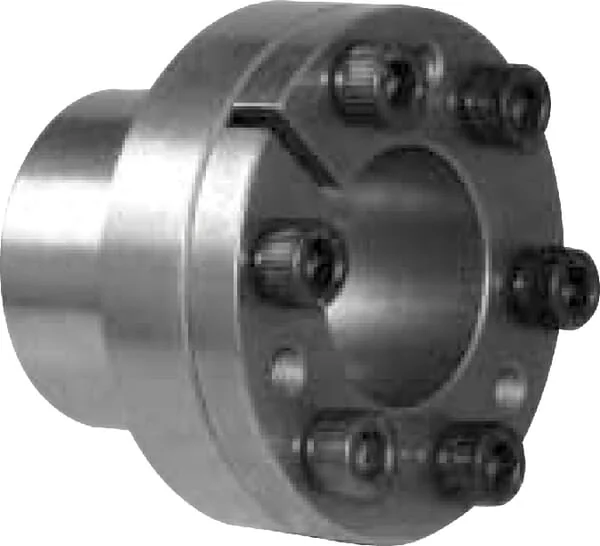

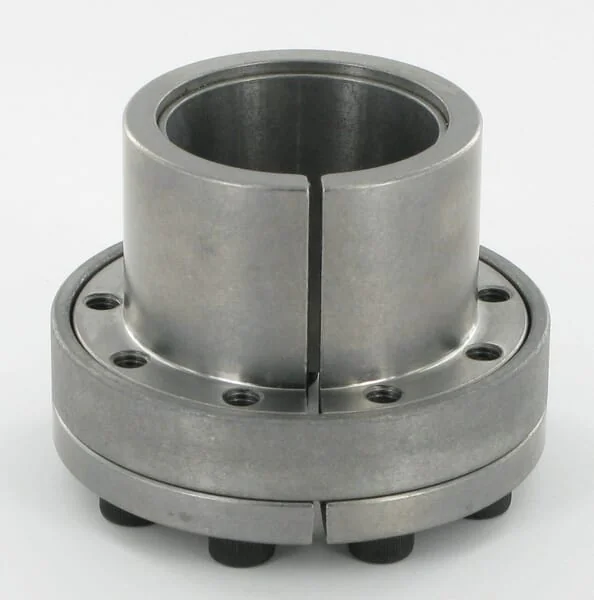

Sit - CAL3F5065 - Sit-Lock 3 Element 50/65
Sit - CAL3F5065 - Sit-Lock 3 Element 50/65
Sit - CAL3F5065 - Sit-Lock 3 Element 50/65
Sit - CAL3F5065 - Sit-Lock 3 Element 50/65
Sit - CAL3F5065 - Sit-Lock 3 Element 50/65
Sit - CAL3F5065 - Sit-Lock 3 Element 50/65
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Sit - CAL3F5065 - Sit-Lock 3 Element 50/65

Sit - CAL3F5065 - Sit-Lock 3 Element 50/65

€29.17

(Excl. VAT)

Price

(Excl. VAT)

€29.17

Product Description

Shaft-hub connection without keys Simple to assemble/dismantle Precise centring
Sit

Product Details

Brand
Sit
H3
62 mm
Unit
Each
Bolts
M8
Benefits
No effect on shaft Short assembly time Lower machining costs

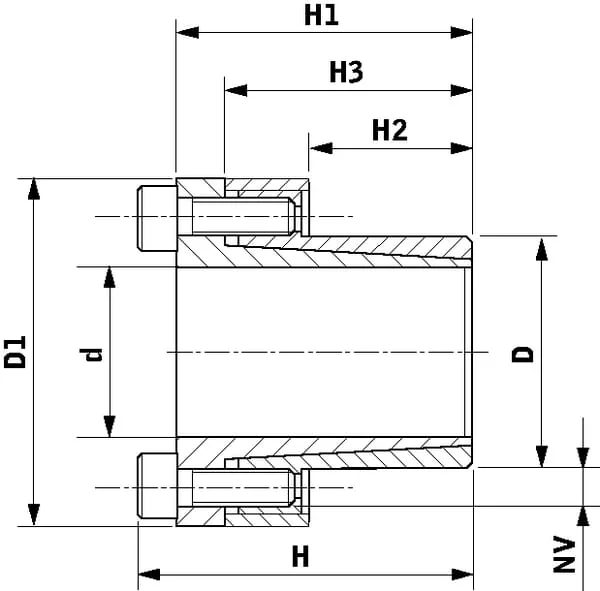

H1Length
70 mm
H2Height
45 mm
Consists of
2 conical torque couples Distance ring Screws
Axial force F
84 kN
DDiameter hub
65 mm
Number per set
8
Technical info
Shaft tolerance: h8 Hub tolerance: H8 Material roughness: < 16 µm
HOverall length
78 mm
dInside diameter
50 mm
Application range
V-belt pulleys Sprockets Ideal for hubs with low wall thickness
Tightening torque
41 N·m
D1Outside diameter
92 mm
Transmittable torque M
2101 N·m
Manufacturer
