Transmission, Drivetrain & Brakes

Drivetrain Parts

Other Drivetrain Parts

Sit - GDM48 - Hub Sitex Size 48 Solid

Sit - GDM48 - Hub Sitex Size 48 Solid

Sit - GDM48 - Hub Sitex Size 48 Solid

Sit - GDM48 - Hub Sitex Size 48 Solid

Number of products

In stock - ready to ship

Order now for delivery between 22 May and 26 May

Free shipping on orders over €60

Pay Securely with

Sit - GDM48 - Hub Sitex Size 48 Solid

Sit - GDM48 - Hub Sitex Size 48 Solid

€22.04

(Excl. VAT)

Price

(Excl. VAT)

€22.04

Number of products

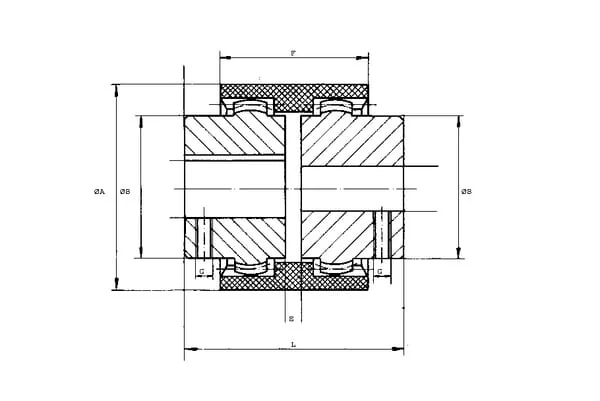

Product Description

Optimum flexible coupling for compensating for radial alignment errors and angle deviation

Sit

Product Details

Brand

Info

Interchangeable with Bowex and Dentex

Type

48

Unit

Each

FWidth

50 mm

Torque

142 N·m

Material

Steel

Hub Width

50 mm

Properties

Highly insensitive to oil and chemicals Not rupture-proof

Consists of

1 coupling half Complete coupling consists of: 2 type GDM halves and 1 type AD sleeve

Torque max.

426 N·m

BDiameter hub

68 mm

LTotal length

104 mm

Technical info

Material: steel On request with bore and keyway

Number of tines

50

Revolutions max.

5580 r/min

AOutside diameter

100 mm

Application range

Shaft connection for a hydraulic pump or hydraulic motor, among others

Shaft misalignment axial max.

1 mm

Distance between coupling halfs

4 mm

Manufacturer

Sit
