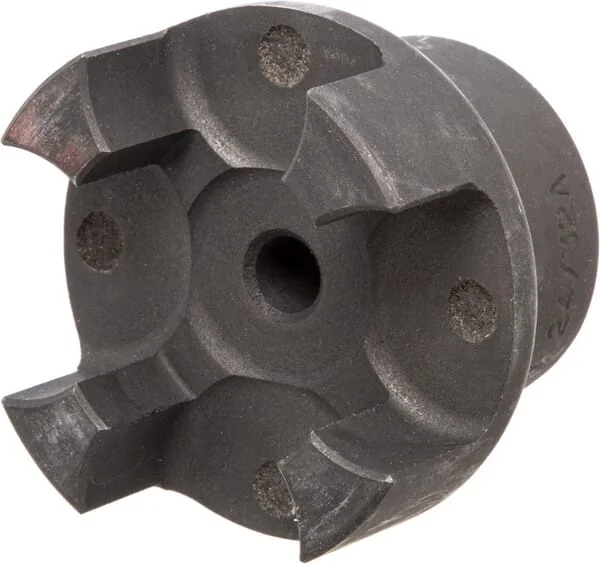

Sit - GRMP2432A - Hub Gg 24 A Pilot Bore

Sit - GRMP2432A - Hub Gg 24 A Pilot Bore

Sit - GRMP2432A - Hub Gg 24 A Pilot Bore

Sit - GRMP2432A - Hub Gg 24 A Pilot Bore

Sit - GRMP2432A - Hub Gg 24 A Pilot Bore

Number of products

In stock - ready to ship

Order now for delivery between 1 May and 5 May

Free shipping on orders over €60

Pay Securely with

Sit - GRMP2432A - Hub Gg 24 A Pilot Bore

Sit - GRMP2432A - Hub Gg 24 A Pilot Bore

€8.66

(Excl. VAT)

Price

(Excl. VAT)

€8.66

Number of products

Product Description

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)

Sit

Product Details

Brand

Unit

Each

Includes

1 coupling half

Material

Cast iron GG25

Type code

24/32

IHub width

24 mm

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

FgKey width

8 mm

HLength body

30 mm

ADiameter hub

40 mm

LTotal length

78 mm

Technical info

Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)

Application range

Shaft connection for pumps and motors

GBore diameter max.

24 mm

EOutside diameter flange

55 mm

Max. shaft misalignment axial

1.4 mm

Max. shaft misalignment radial

0.22 mm

Nominal working torque by 92°

35 N·m

Nominal working torque by 98°

60 N·m

Max. shaft misalignment angular

1.5 °

Manufacturer

Sit
