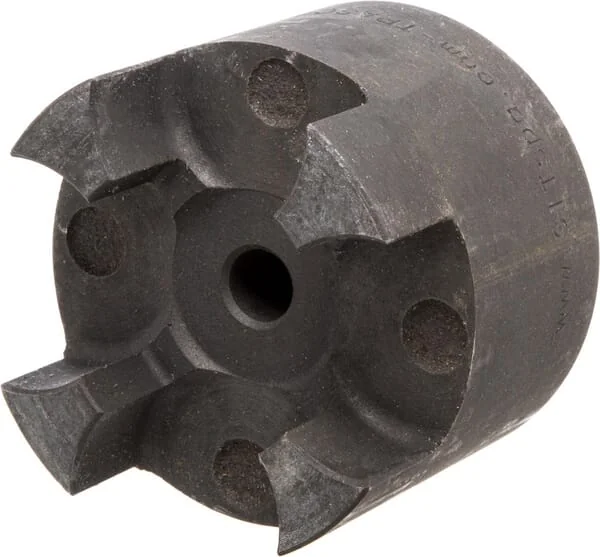

Sit - GRMP3845B - Hub Gg 38 B Pilot Bore
Sit - GRMP3845B - Hub Gg 38 B Pilot Bore
Sit - GRMP3845B - Hub Gg 38 B Pilot Bore
Sit - GRMP3845B - Hub Gg 38 B Pilot Bore
Sit - GRMP3845B - Hub Gg 38 B Pilot Bore

In stock - ready to ship

Order now for delivery between 13 May and 16 May
Free shipping on orders over €60

Pay Securely with

Sit - GRMP3845B - Hub Gg 38 B Pilot Bore

Sit - GRMP3845B - Hub Gg 38 B Pilot Bore

€17.19

(Excl. VAT)

Price

(Excl. VAT)

€17.19

Product Description

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)
Sit

Product Details

Brand
Sit
Unit
Each
Includes
1 coupling half
Material
Cast iron GG25
Type code
38/45
Properties
Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940
Consists of
1 coupling half
FgKey width
36 mm
HLength body
45 mm
ADiameter hub
80 mm
LTotal length
114 mm
Technical info
Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)
Application range
Shaft connection for pumps and motors
Max rotation speed
9500 r/min
GBore diameter max.
45 mm
MClearance distance
24 mm
EOutside diameter flange
80 mm
Max. shaft misalignment axial
1.8 mm
Max. shaft misalignment radial
0.28 mm
Nominal working torque by 92°
190 N·m
Nominal working torque by 98°
325 N·m
Max. shaft misalignment angular
1.5 °
Manufacturer
Sit
