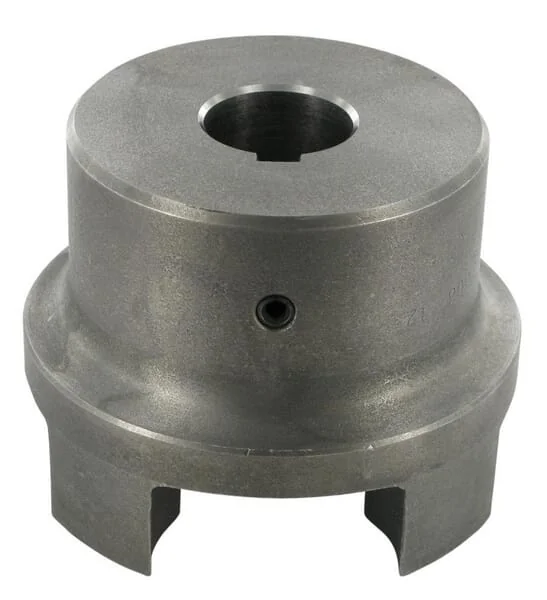

Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8
Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8
Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8
Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8
Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8
Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping on orders over €60

Pay Securely with

Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8

Sit - GRMP4860AF30 - Hub Gg 48 A Diameter 30h7 Key 8

€41.58

(Excl. VAT)

Price

(Excl. VAT)

€41.58

Product Description

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)
Sit

Product Details

Brand
Sit
Hole
30H7
Unit
Each
Includes
1 coupling half
Material
Cast iron GG25
Type code
48/60
IHub width
45 mm
Properties
Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940
Consists of
1 coupling half
FgKey width
8 mm
HLength body
56 mm
ADiameter hub
85 mm
LTotal length
140 mm
Technical info
Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)
Application range
Shaft connection for pumps and motors
Max rotation speed
7100 r/min
MClearance distance
28 mm
EOutside diameter flange
105 mm
Max. shaft misalignment axial
2.1 mm
Max. shaft misalignment radial
0.36 mm
Nominal working torque by 98°
525 N·m
Max. shaft misalignment angular
1.5 °
Manufacturer
Sit
