Transmission, Drivetrain & Brakes

Drivetrain Parts

Other Drivetrain Parts

Sit - GRMP6575B - Hub Gg 65 B Pilot Bore

Sit - GRMP6575B - Hub Gg 65 B Pilot Bore

Sit - GRMP6575B - Hub Gg 65 B Pilot Bore

Sit - GRMP6575B - Hub Gg 65 B Pilot Bore

Sit - GRMP6575B - Hub Gg 65 B Pilot Bore

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Sit - GRMP6575B - Hub Gg 65 B Pilot Bore

Sit - GRMP6575B - Hub Gg 65 B Pilot Bore

€52.02

(Excl. VAT)

Price

(Excl. VAT)

€52.02

Number of products

Product Description

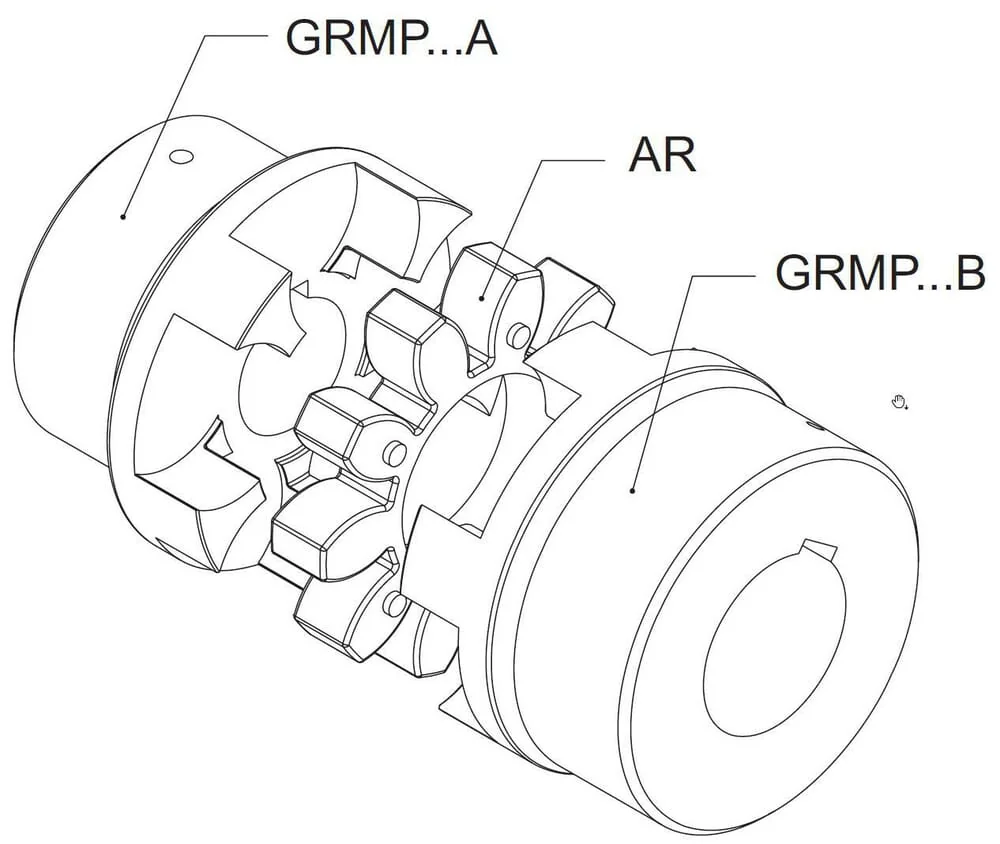

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)

Sit

Product Details

Brand

Unit

Each

Includes

1 coupling half

Material

Cast iron GG25

Type code

65/75

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

FgKey width

15 mm

HLength body

75 mm

ADiameter hub

135 mm

LTotal length

185 mm

Technical info

Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)

Application range

Shaft connection for pumps and motors

Max rotation speed

5600 r/min

GBore diameter max.

75 mm

MClearance distance

35 mm

EOutside diameter flange

135 mm

Max. shaft misalignment axial

2.6 mm

Max. shaft misalignment radial

0.42 mm

Nominal working torque by 92°

625 N·m

Nominal working torque by 98°

950 N·m

Max. shaft misalignment angular

1.5 °

Manufacturer

Sit
