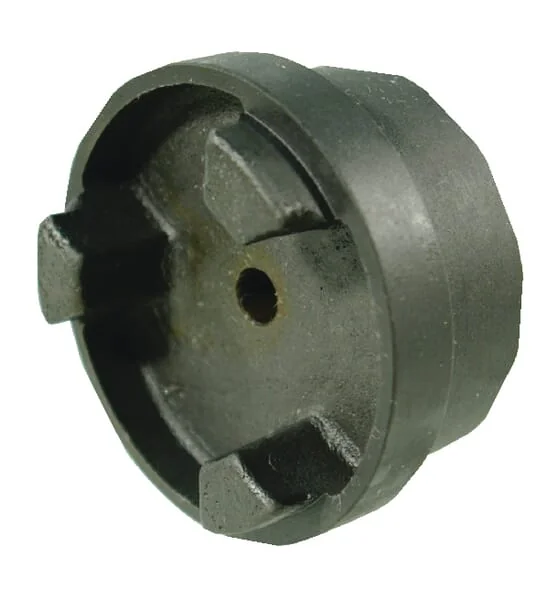

Sit - HRCP180B - Hub Gg, Pilot Bore
SKU: sit-hrcp180b




€72.12
(excl. VAT)RRP:€86.29
Save €14.17
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping
Pay Securely with

Sit - HRCP180B - Hub Gg, Pilot Bore
€72.12
(Excl. VAT)
Price
(Excl. VAT)
€72.12
Sit is a manufacturer known for its industrial components, particularly in the field of power transmission and motion control. While specific founding details like year or founder are not widely publicized, the company has established itself as a reliable supplier of mechanical parts for various applications.
The brand's product portfolio typically includes a range of components essential for the operation of machinery. These often encompass items like couplings, pulleys, sprockets, and other elements critical for transmitting power and managing motion within industrial systems. Its offerings are designed to ensure efficient and reliable performance in demanding environments.
At Partao, you can find a selection of Sit components, with top categories including Other Drivetrain Parts, Other Hydraulics Parts, Other Wear Parts, and Wheel Hubs. These parts are crucial for maintaining the operational integrity of various agricultural and industrial machines. Over 249 genuine Sit spare parts are available at Partao.
Customers often select Sit components for their robust construction and compatibility with a wide array of equipment. The brand's focus on precision engineering helps ensure that its parts integrate seamlessly into existing systems, providing dependable performance for ongoing operations in agriculture and other sectors.
Product Details
Brand
Type
180
Unit
Each
Weight
9.2 kg
Benefits
High level of operational reliability
Material
GG25
Properties
Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940
Consists of
1 coupling half
Length body
70 mm
Total length
186 mm
l2Length hub
58 mm
Bore diameter
28 mm
Nominal torque
950 kpm
Technical info
Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type HRC and 1 plastic star Can be replaced with Fenner HRC
d1Diameter hub
125 mm
Application range
Shaft connection for pumps and motors
Bore diameter max.
80 mm
daOutside diameter flange
180 mm
Max. revolutions min-1 rpm.
3000
Max. shaft misalignment axial
1.1 mm
Max. shaft misalignment radial
0.4 mm
Max. shaft misalignment angular
1 °
Manufacturer
Sit
