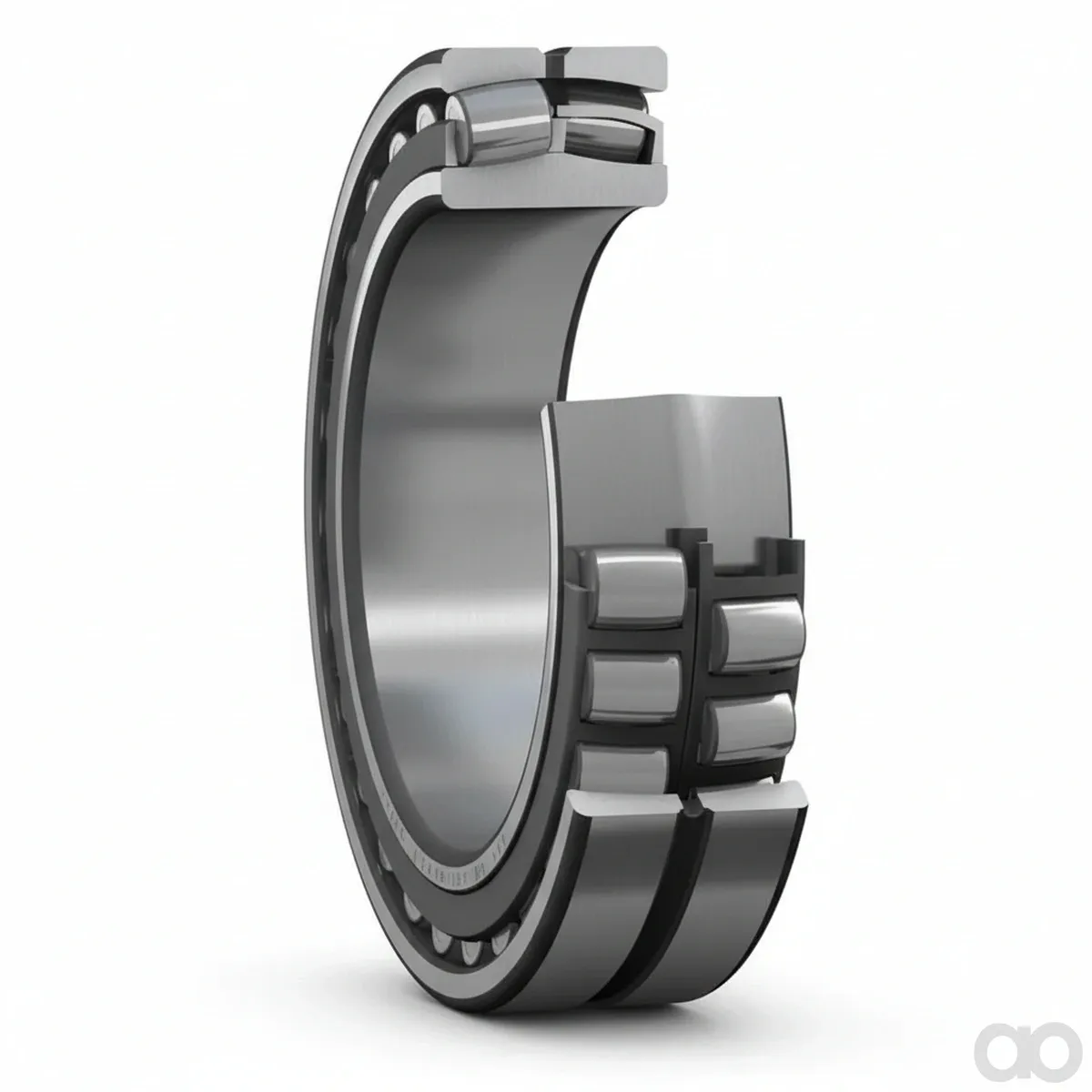

SKF - 22228CCW33 - Spherical roller bearing 22228 CC/W33

OEM Supplier

SKU: skf-22228ccw33

SKF - 22228CCW33 - Spherical roller bearing 22228 CC/W33

Last known price:

€783.95

Request a Quote

Pay Securely with

Request a Quote

Brand
skf
Part Numbers
22228ccw33
Bore Diameter (mm)
140
Outer Diameter (mm)
250
Width (mm)
68
Weight (kg)
18.5
Basic Dynamic Load Rating (kN)
915
Basic Static Load Rating (kN)
1040
Reference Speed (rpm)
1700
Limiting Speed (rpm)
2400
Fatigue Load Limit (kN)
108
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
200
Permissible Axial Displacement (mm)
6.5
Calculation Factor E
0.23
Calculation Factor Y0
2.6
Calculation Factor Y1
2.7
Calculation Factor Y2
4
Coefficient Of Friction
0.0018
Inner Ring NO Of Effective Rolling Contact Rows
2
Outer Ring NO Of Effective Rolling Contact Rows
2
Number Of Rows Of Rollers
2
Cage Material
Sheet steel
Lubrication Hole In Outer Ring
Yes
Lubrication Groove In Outer Ring
Yes
Relubrication Feature
W33
Bore Type
Cylindrical
Seal Type
No seal
Clearance
CN (Normal)
Tolerance Class
Normal
Locating Feature Bearing Outer Ring
null
Coating
Without
Material Bearing
Bearing steel
Manufacturing Process
Standard
Separable
No
Performance Class
SKF Explorer
Product Family
Standard
Mounting
Standard
Enclosure
Open
Design
CC
Bearing Type
Spherical roller
Outer Ring Raceway
Cylindrical
Inner Ring Raceway
Cylindrical
Radial Internal Clearance
Normal
Quality
OEM Supplier
Manufacturer
skf

The SKF 22228CCW33 is a high-performance spherical roller bearing designed for demanding applications. Featuring a 140 mm bore diameter, 250 mm outer diameter, and 68 mm width, this SKF Explorer class bearing has a cylindrical bore and a sheet steel cage. It includes the W33 lubrication feature with three lubrication holes and a circumferential groove in the outer ring, ensuring efficient relubrication. With a basic dynamic load rating of 915 kN and a basic static load rating of 1040 kN, it offers reliable operation across a wide temperature range from -40 °C to 200 °C.
SKF
SKF is a global supplier of bearings, seals, and lubrication systems for agricultural machinery. The brand provides components for tractors, harvesters, and other farm equipment. Its products are engineered to reduce friction and extend service life in demanding agricultural applications. Shop more than 10,400 genuine Skf spare parts.
