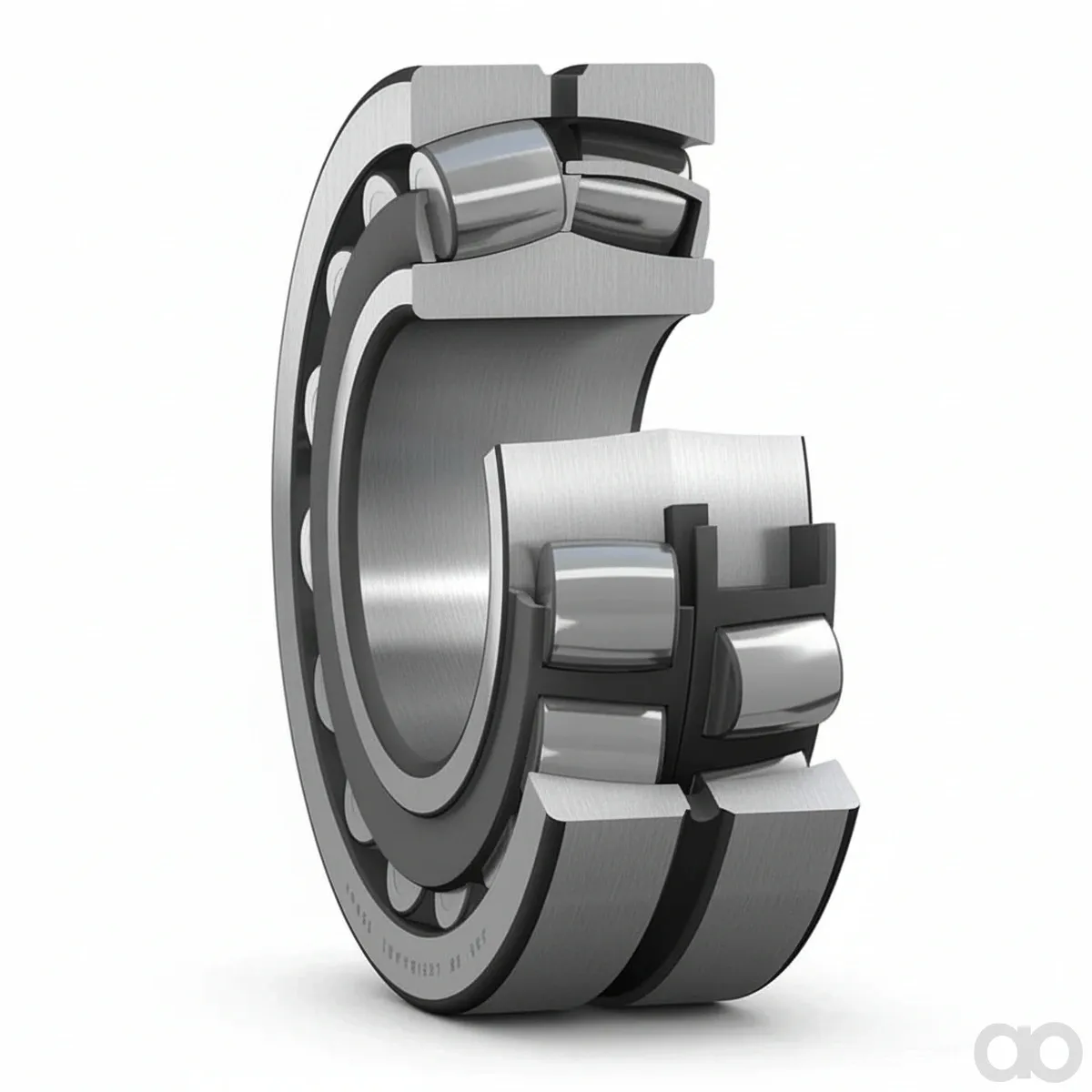

SKF - 22348CC/C3W33 - SKF Spherical roller bearing

OEM Supplier

SKU: skf-22348ccc3w33

SKF - 22348CC/C3W33 - SKF Spherical roller bearing

€6,775.76

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€6,775.76

The SKF 22348CCC3W33 is a genuine SKF spherical roller bearing designed to accommodate heavy radial loads and heavy axial loads in both directions. This non-locating bearing is insensitive to angular misalignment, making it suitable for demanding applications. It features a cylindrical bore, C3 radial internal clearance, and W33 lubrication holes in the outer ring for enhanced relubrication. Constructed from durable bearing steel with a sheet steel cage, it offers a basic dynamic load rating of 1530 kN and a static load rating of 2000 kN. The bearing has a bore diameter of 240 mm, an outer diameter of 500 mm, and a width of 155 mm, weighing 106 kg.
SKF
SKF is a global supplier of bearings, seals, and lubrication systems for agricultural machinery. The brand provides components for tractors, harvesters, and other farm equipment. Its products are engineered to reduce friction and extend service life in demanding agricultural applications. Shop more than 9,130 genuine Skf spare parts.

Brand
skf
Part Numbers
22348ccc3w33
Bore Diameter (mm)
240
Outer Diameter (mm)
500
Width (mm)
155
Weight (kg)
106
Basic Dynamic Load Rating C (kN)
1530
Basic Static Load Rating C0 (kN)
2000
Fatigue Load Limit Pu (kN)
200
Reference Speed (rpm)
750
Limiting Speed (rpm)
1000
Cage Material
sheet steel
Number Of Rows
2
Inner Ring Features
cylindrical bore
Lubrication Hole
yes, in outer ring
Seal
no
Radial Internal Clearance
c3
Tolerance Class
normal
Locating Feature
none
Coating
no
Bore Type
cylindrical
Material
bearing steel
Relubrication Feature
w33
Permissible Operating Temperature (°C)
-40 to 200
Quality
OEM Supplier
Manufacturer
skf
