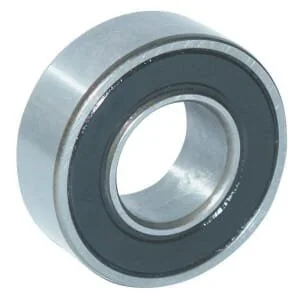

SKF - 2309E2RS1TN9C3 - Self-Aligning Ball Bearing

Name: SKF - 2309E2RS1TN9C3 - Self-Aligning Ball Bearing
Brand: SKF
SKU: skf-2309e2rs1tn9c3
Price: 163.47 EUR
Availability: InStock

OEM Supplier

SKU: skf-2309e2rs1tn9c3

SKF - 2309E2RS1TN9C3 - Self-Aligning Ball Bearing

€163.47€139.72 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€163.47

Brand

SKF

Part Numbers

2309e2rs1tn9c3

Bore Diameter (mm)

Outer Diameter (mm)

100

Width (mm)

Basic Dynamic Load Rating (kN)

52.6

Basic Static Load Rating (kN)

18.6

Fatigue Load Limit (kN)

0.78

Limiting Speed Grease (rpm)

5000

Limiting Speed Oil (rpm)

6700

Weight (kg)

1.1

Seal Type

2RS1 (contact seals on both sides)

Cage Material

Polyamide 66 (TN9)

Radial Internal Clearance

C3 (greater than normal)

Design Feature

Optimized internal design (E)

Quality

OEM Supplier

Manufacturer

SKF

The SKF 2309E2RS1TN9C3 is a high-quality self-aligning ball bearing featuring an optimized internal design (E) for enhanced performance. It has a 45 mm bore diameter, 100 mm outer diameter, and 36 mm width. This bearing is equipped with contact seals on both sides (2RS1) to protect against contaminants and retain lubricant, and a polyamide 66 cage (TN9). It provides a C3 radial internal clearance, which is greater than normal, suitable for applications with higher operating temperatures or where shaft expansion is expected. With a basic dynamic load rating of 52.6 kN and a static load rating of 18.6 kN, it offers reliable operation in various industrial applications.

SKF is a globally renowned supplier of bearings, seals, mechatronics, services, and lubrication systems. Founded in 1907 in Gothenburg, Sweden, by Sven Wingquist, the company quickly grew to become a leader in its field. Headquartered in Gothenburg, SKF maintains a vast international presence, serving a multitude of industries, including automotive, aerospace, energy, and heavy machinery, with a strong focus on agricultural applications. The company's product portfolio is extensive, covering a wide array of precision-engineered components critical for the smooth operation of machinery. SKF is particularly known for its high-quality ball bearings, roller bearings, and bearing units, which are essential for reducing friction and supporting rotational parts in various agricultural machines. Beyond bearings, the brand also manufactures seals, lubrication systems, and condition monitoring solutions, all designed to enhance performance, increase uptime, and extend the service life of equipment. Its technological advancements often focus on energy efficiency and environmental sustainability. At Partao, you can find a comprehensive selection of SKF components for your agricultural machinery. Our catalog features top categories such as Ball Bearings, Bearing Housings, Belt Tensioners, Bolts & Fasteners, and Camshafts. These parts are vital for the reliable function and longevity of tractors, harvesters, and other farm equipment. Agricultural operators worldwide rely on SKF products for their proven durability and performance in demanding environments. The brand's components are integral to the efficient operation of a wide range of farm equipment, from the wheels and transmissions of tractors to the complex mechanisms of combines and balers. Its commitment to engineering excellence ensures that farmers can maintain their machinery with parts that withstand the rigors of daily agricultural work, contributing to sustained productivity across diverse farming operations. Shop more than 10,400 genuine SKF spare parts.
