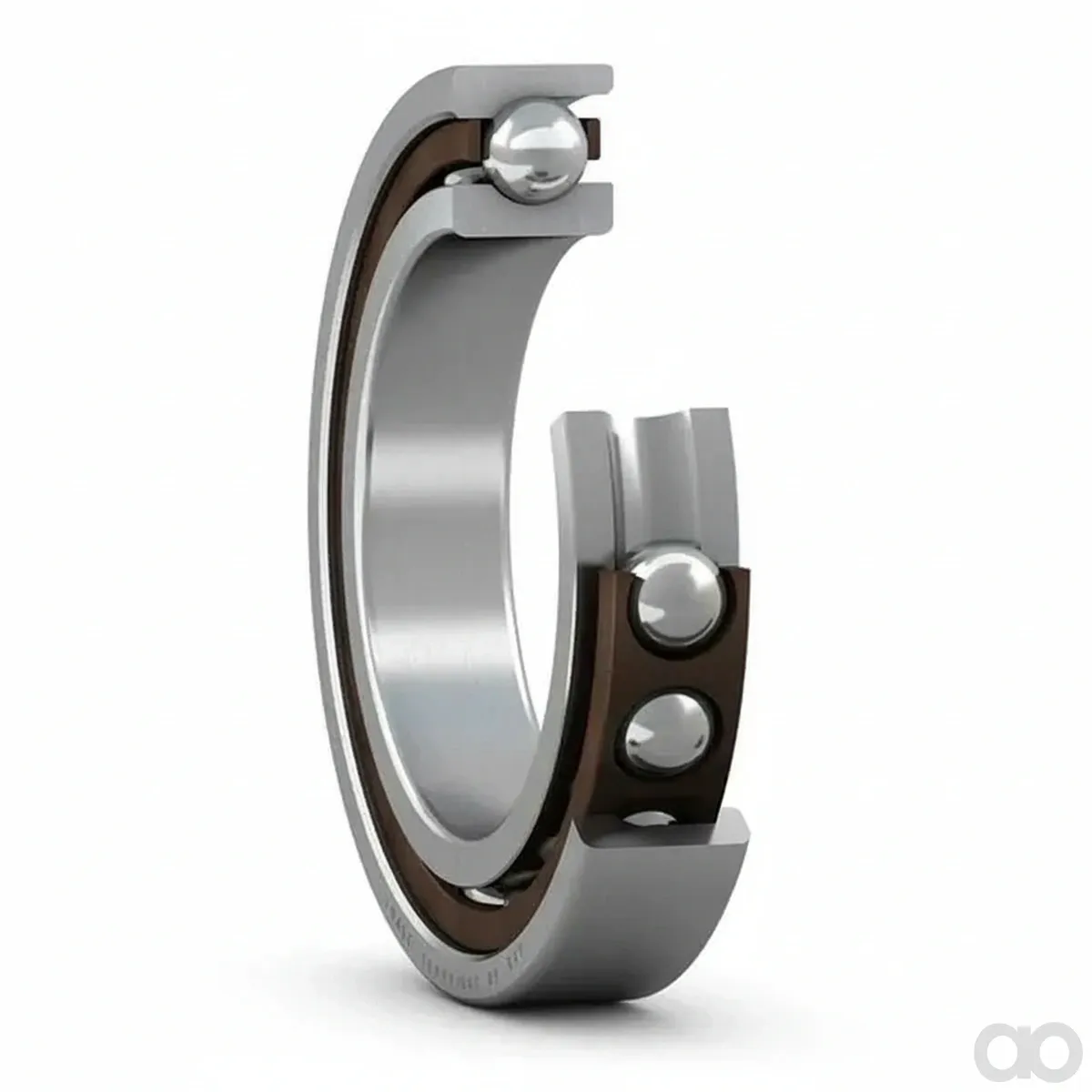

SKF - 7014ACDGAP4A - Precision Bearing 7014 ACDGA/P4A

The SKF 7014ACDGAP4A is a high-precision single row angular contact ball bearing designed for applications requiring high running accuracy and speed. With a bore diameter of 70 mm, an outer diameter of 110 mm, and a width of 20 mm, this bearing features a 25° contact angle (A) for axial load capacity. The 'CDGA' designation indicates that it is universally matchable for duplex arrangements in back-to-back (DB), face-to-face (DF), or tandem (DT) configurations, allowing for flexible mounting. The 'P4A' precision class signifies a higher level of accuracy than P4, ensuring optimal performance in demanding industrial machinery.
