SKF - 71809ACDGAP4 - Precision Bearing 71809 ACDGA/P4
SKF - 71809ACDGAP4 - Precision Bearing 71809 ACDGA/P4

Last known price:

€378.84

Get an up-to-date price and availability

Request a Quote

Pay Securely with

SKF - 71809ACDGAP4 - Precision Bearing 71809 ACDGA/P4

SKF - 71809ACDGAP4 - Precision Bearing 71809 ACDGA/P4

Last known price:

€378.84

Request a Quote

Product Description

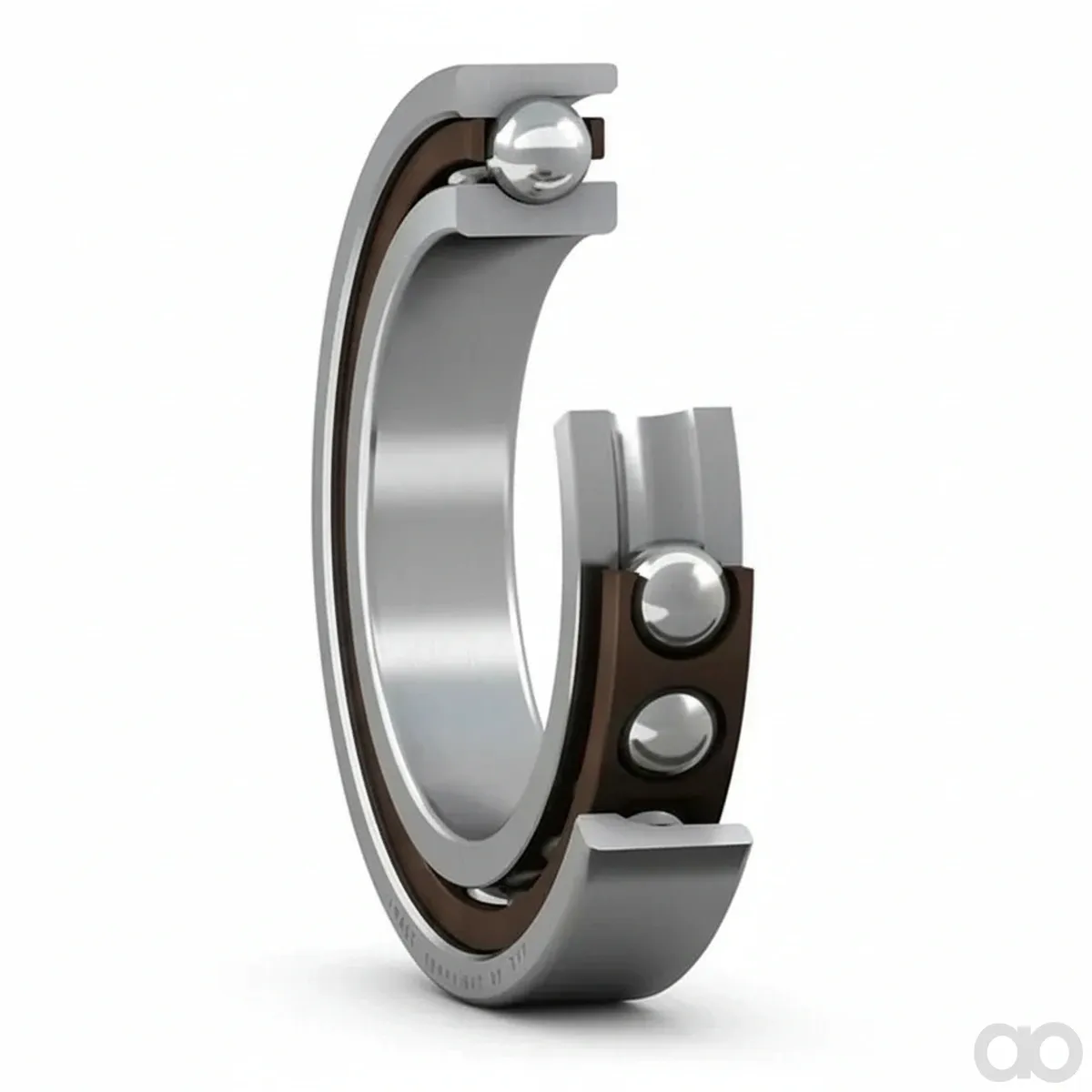

The SKF 71809 ACDGA/P4 is a high-precision single row angular contact ball bearing featuring a 25° contact angle (ACD), universally matchable design (GA), and P4 tolerance class. It has a bore diameter of 45 mm, an outer diameter of 85 mm, and a width of 19 mm. Constructed with a phenolic resin cage and bearing steel, this bearing offers high rigidity and accuracy for demanding industrial applications, with a dynamic load rating of 37.5 kN and a static load rating of 26.5 kN.
SKF
SKF is a global supplier of bearings, seals, and lubrication systems for agricultural machinery. The brand provides components for tractors, harvesters, and other farm equipment. Its products are engineered to reduce friction and extend service life in demanding agricultural applications. Shop more than 9,130 genuine Skf spare parts.

Product Details

Brand
skf
Equivalent AM Part Numbers

Fag

B71809CTP4SUL

Nsk

71809CTYDULP4

Ntn

71809CP4

Nachi

71809CP4
Bore Diameter (mm)
45
Outer Diameter (mm)
85
Width (mm)
19
Contact Angle (°)
25
Tolerance Class
P4
Arrangement
universally matchable
Cage Material
phenolic resin
Dynamic Load Rating (kN)
37.5
Static Load Rating (kN)
26.5
Reference Speed (rpm)
22000
Limiting Speed (rpm)
15000
Weight (kg)
0.43
Quality
OEM Supplier
Manufacturer
skf
