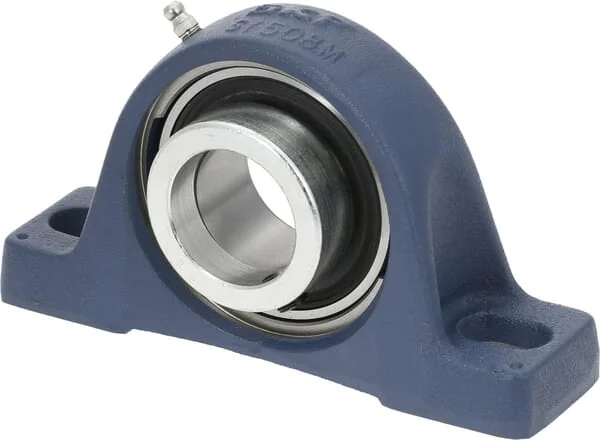

SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm
SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm
SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm
SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm
SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm
SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm

SKF - 7500SY40FM - Bearing Housing Cpl. SKF Shaft 40mm

€45.73

(Excl. VAT)

Price

(Excl. VAT)

€45.73

Product Description

The SKF 7500SY40FM is a genuine SKF bearing housing assembly, specifically designed for a 40mm shaft. This robust unit is commonly used in agricultural machinery and various industrial applications, providing reliable support and protection for bearings. It ensures optimal performance and extended service life in demanding operating conditions.
SKF
SKF is a global supplier of bearings, seals, and lubrication systems for agricultural machinery. The brand provides components for tractors, harvesters, and other farm equipment. Its products are engineered to reduce friction and extend service life in demanding agricultural applications. Shop more than 9,130 genuine Skf spare parts.

Product Details

Brand
SKF
Unit
Each
Weight
1,8462 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Total width
56,7 mm
Housing type
Pillow block
HTotal height
99 mm
LTotal length
175 mm
B1Housing width
43,2 mm
Bearing material
Steel
Housing material
Cast iron
Outside diameter
175 mm
H2Flange thickness
19 mm
AMounting plate width
48 mm
N1Mounting holes width
14 mm
NMounting holes length
24,5 mm
Basic radial load static
21600 N
Bearing inner ring width
56,6 mm
JMounting holes distance
135,5 mm
dBearing inside diameter
40 mm
Basic radial load dynamic
30700 N
GMounting thread diameter
M12
H1Shaft vertical distance
49,2 mm
JMounting holes distance range
125-146 mm
d2Bearing balls distance to locking side end
51,8 mm
Manufacturer
SKF
