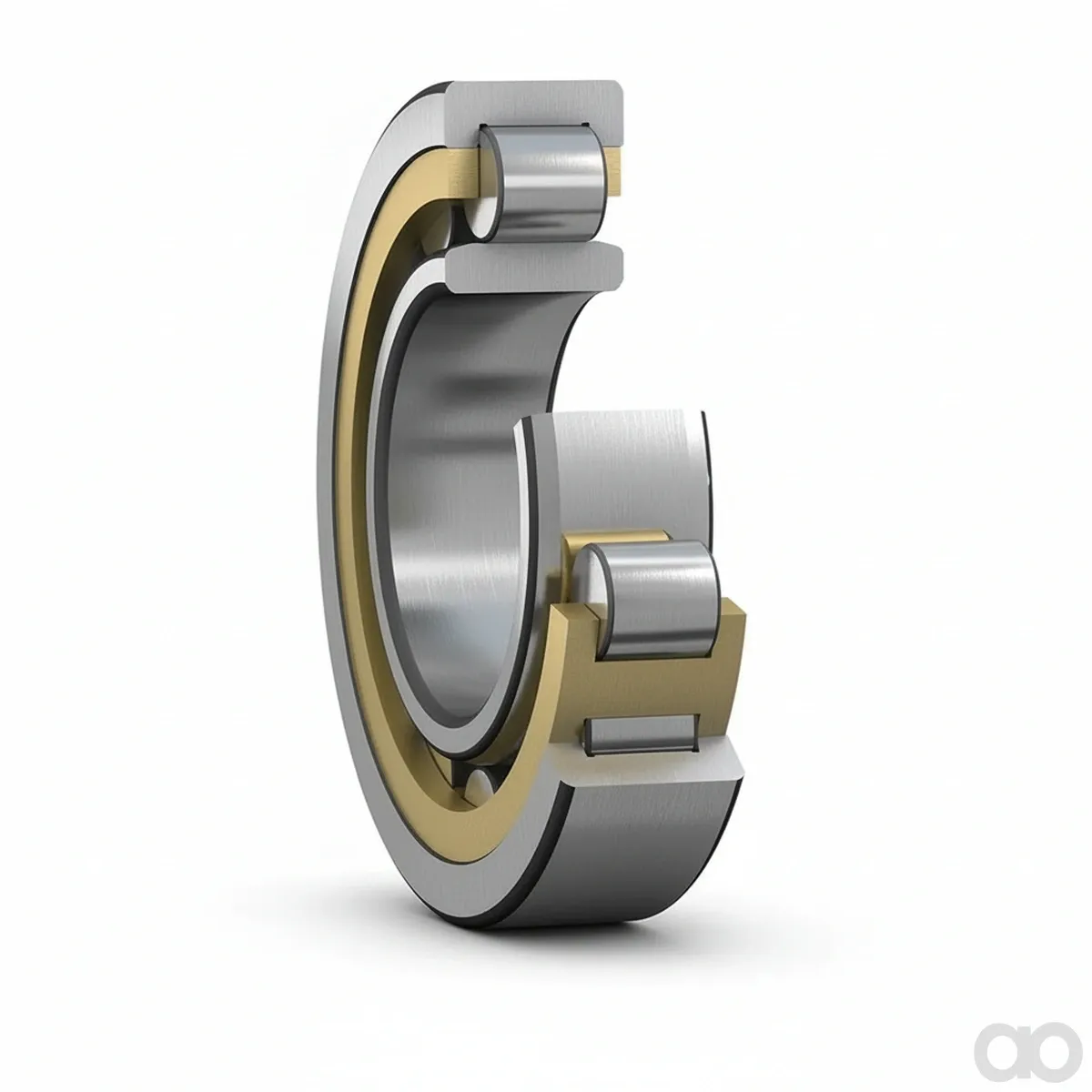

SKF - NU1010MLC3 - Taper Roller Bearing NU 1010 ML/C3

The SKF NU1010MLC3 is a high-quality single row cylindrical roller bearing featuring a NU design, ideal for applications requiring high radial load capacity and high speeds. It has a 50 mm bore, 80 mm outer diameter, and 16 mm width. This bearing is equipped with a machined brass cage (ML) centered on the outer ring and offers C3 radial internal clearance, which is greater than normal, allowing for thermal expansion and misalignment. With a basic dynamic load rating of 54 kN and a static load rating of 58.5 kN, it ensures reliable performance in demanding industrial environments. The NU design allows for axial displacement of the shaft relative to the housing within the bearing, simplifying mounting.
