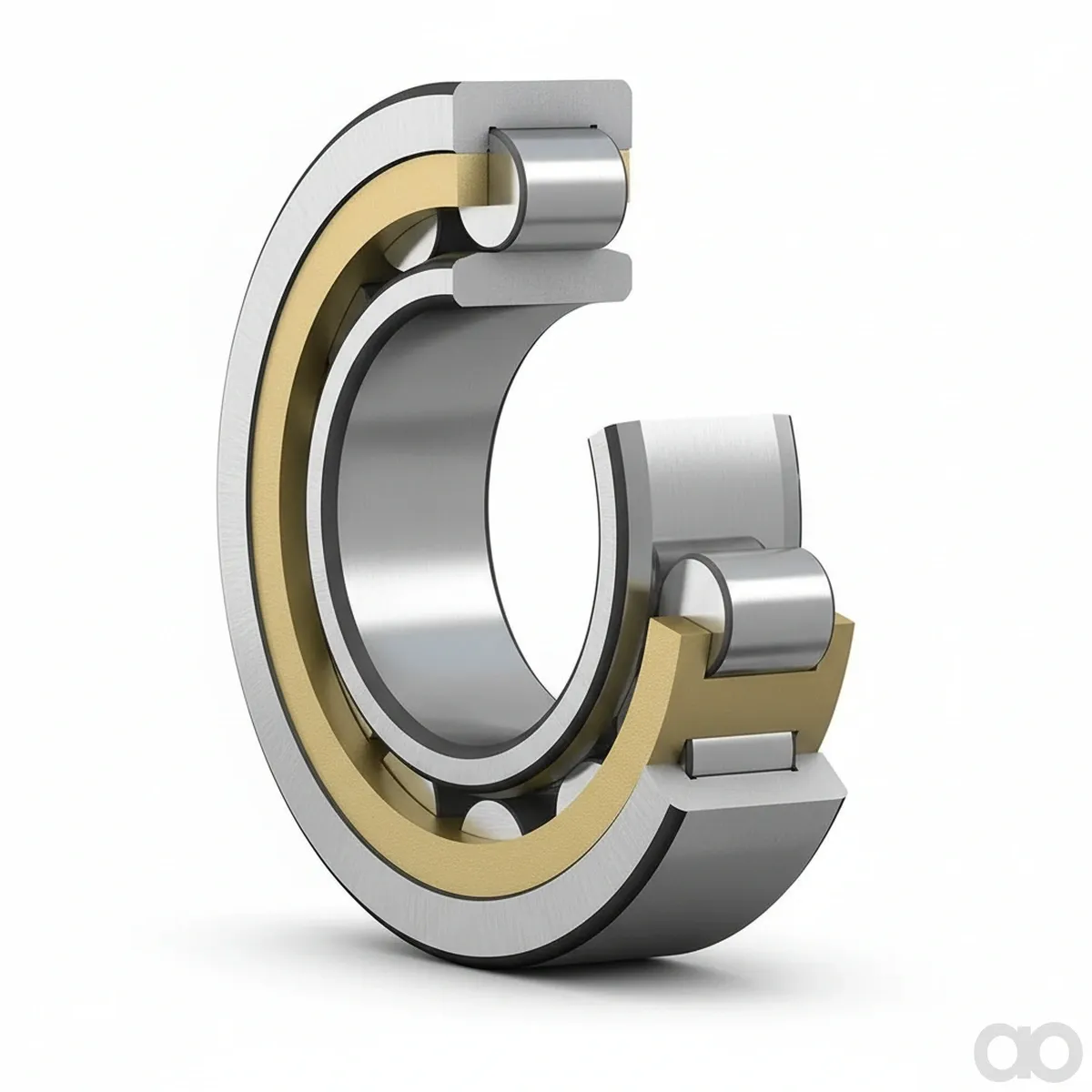

The SKF NU2236ECMLC3 is a high-performance single row cylindrical roller bearing from the SKF Explorer series, designed for heavy radial loads and high speeds. It features a 180 mm bore, 320 mm outer diameter, and 52 mm width, with C3 radial internal clearance. The bearing has an inner ring with two integral flanges and an outer ring with no flanges, allowing for axial displacement. Constructed with a brass cage, it is suitable for operating temperatures from -40 °C to 120 °C.

SKF is a global supplier of bearings, seals, and lubrication systems for agricultural machinery. The brand provides components for tractors, harvesters, and other farm equipment. Its products are engineered to reduce friction and extend service life in demanding agricultural applications. Shop more than 9,130 genuine Skf spare parts.

Brand

skf

Bore Diameter (mm)

180

Outer Diameter (mm)

320

Width (mm)

Weight (kg)

18.5
